Device enabling single dispensing, with electronic metering and automatic stoppage ofwater volume without control of process water temperature.
Water temperature below 35°C
Nominal flow rate: 8 litres per minute at 0.05 bar
Supply voltage: 240V single-phase 50Hz
Accessory: Dispenser outlet pipe with mixing trough attachment bar.
W. 340 mm x D. 130 mm x H. 240 mm (electrical section)
W. 350 mm x D. 130 mm x H. 240 mm (hydraulic section)
Weight: 7 kg

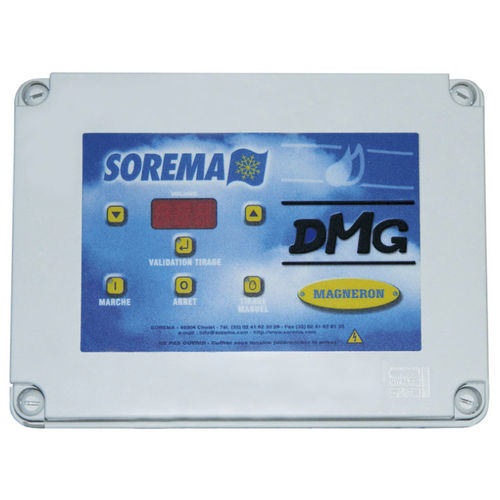

Gravitary water meter DMG
- Simple gravitary dosage -
Designed water meter for installation without pump-operated water cooler and gravity flowing in the
dough mixer • Adjustable volume from 0,1 up to 99,9 litres. • Dosage unit : 0,1 litre • Precision : +/- 2%.
• Operating conditions : - water temperature from 0 to 35°C - Ambient temperature from 2 to 50°C.
• Nominal flowrate: 8 litres per minute under 0,05 bar - Electrical supply : 240V 1Ph 50Hz.
• Accessory : water outlet flexible with cross to hang on dough mixer.
It is necessary to place the water meter at least at 30 cm down to the water cooler outlet
