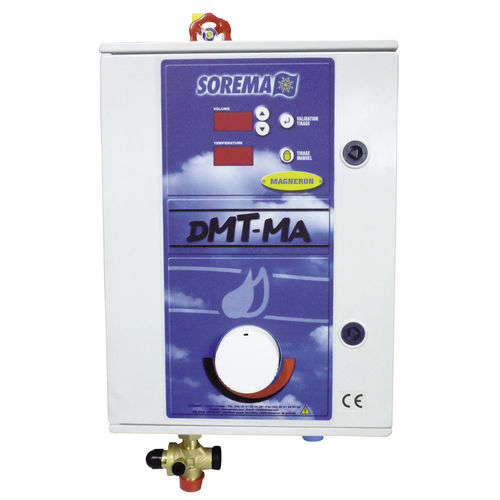

Water mixer-dispenser DMT-MA

weightfor the food industryautomatic

This dispenser is intended for an installation with chiller equipped with a booster pump (pressure required: 2 bars) or under mains network water pressure Terms of use: Temperature range 0°C to 35°C Nominal flow rate: 15 litres per minute at 2 bars Automatic stoppage Pouring temperature display Manual temperature adjustment via thermostatic mixing valve on front panel Supply voltage: 240V single-phase 50Hz Accessories: dispenser outlet pipe with mixing trough attachment bar and pressure reducer on hot water inlet. Options: Determination to 1/10th of a litre for volumes of 0.1 to 99.9 litres. Higher output rate on request. Dimensions: W. 415 mm x D. 195 mm x H. 590 mm Weight: 10 kg
