Pneumatic cylinder SQ2 series

with threaded rodswith piston rodmagnetic piston

Product overview

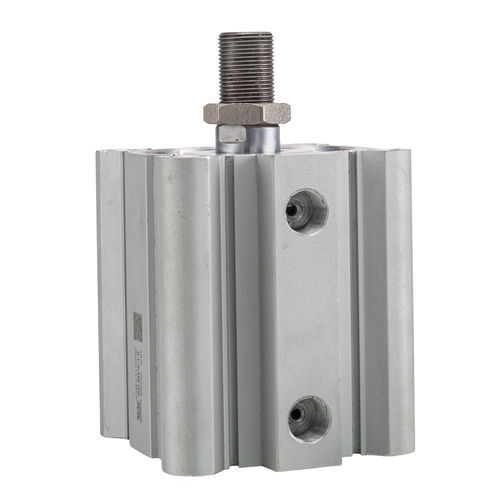

Compact double-acting short-stroke profile pneumatic cylinders designed for space-saving installation. Available across bore sizes Ø20–Ø100 mm with strokes from 5 mm up to 80 mm. Offered in magnetic and non-magnetic variants, with female or male piston rod thread options.

Key features

• Short-stroke compact profile design
• Bore Ø20–Ø100 mm
• Stroke range 5–80 mm
• Female and Male piston rod thread options
• Magnetic and non-magnetic variants (magnetic sensing option)
• Double-acting operation
• Large configuration scope (428 configurations listed)

Available configurations (excerpt of table)
Part Number | Bore (mm) | Stroke (mm) | Magnetic | Thread | Price (GBP)
SQ2-20X5 | 20 mm | 5 mm | Standard | Female | £15.74
SQ2-20X10 | 20 mm | 10 mm | Standard | Female | £16.08
SQ2-20X15 | 20 mm | 15 mm | Standard | Female | £16.34
SQ2-20X20 | 20 mm | 20 mm | Standard | Female | £16.96
SQ2-20X25 | 20 mm | 25 mm | Standard | Female | £17.44
SQ2-20X30 | 20 mm | 30 mm | Standard | Female | £18.08
SQ2-20X35 | 20 mm | 35 mm | Standard | Female | £19.26
SQ2-20X40 | 20 mm | 40 mm | Standard | Female | £20.36
SQ2-20X45 | 20 mm | 45 mm | Standard | Female | £21.00
SQ2-20X50 | 20 mm | 50 mm | Standard | Female | £22.74

Note: The full product listing contains 428 configurations across bores Ø20–Ø100 mm and strokes 5–80 mm. The configurations follow the part-number pattern SQ2-[bore]X[stroke] with options for magnetic or non-magnetic and female or male thread. Prices shown are in GBP per piece and vary by bore and stroke.

Technical specifications

• Series: SQ2 series
• Type: Short-stroke profile pneumatic cylinder, double-acting
• Bore options: 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm (Ø20–Ø100 mm)
• Stroke options: 5 mm up to 80 mm (various increments)
• Thread types: Female or Male piston rod thread
• Magnetic option: Standard (non-magnetic) and Magnetic (magnetic sensing) variants available
• Number of configurations listed on page: 428
• Currency in price table: GBP
• Typical part number format: SQ2-[Bore]X[Stroke] (e.g., SQ2-20X5)
