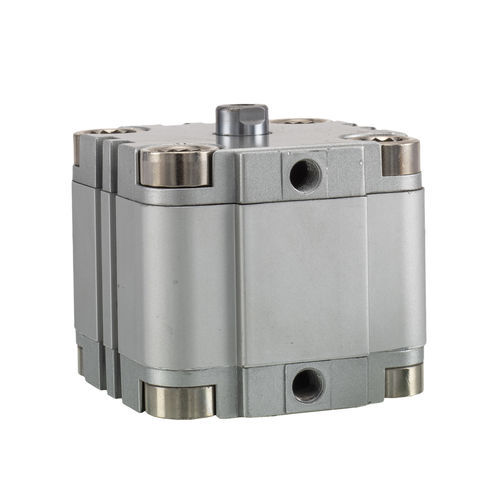

Pneumatic cylinder SDVU series

with through rodwith threaded rodsmagnetic piston

Overview
Compact double-acting short-stroke pneumatic cylinders from the SDVU series with magnetic piston and male-thread rod. Available in standard single-rod and through-rod configurations. Bore range Ø16–Ø80 mm, stroke range 10–80 mm — suited for space-constrained automation, clamping and fixturing applications.

Key features

• Short-stroke compact design
• Bore Ø16 – Ø80 mm
• Stroke 10 – 80 mm
• Magnetic piston for position sensing
• Male-thread rod
• Standard single-rod and through-rod configurations
• Double-acting operation

Configurations (examples)
Part Number | Bore (mm) | Stroke (mm) | Rod Type | Price (GBP)
SDVU16X10-B-S | 16mm | 10mm | Standard | £25.86
SDVU16X25-B-S | 16mm | 25mm | Standard | £27.66
SDVU16X40-B-S | 16mm | 40mm | Standard | £29.00
SDVU20X10-B-S | 20mm | 10mm | Standard | £26.44
SDVU20X40-B-S | 20mm | 40mm | Standard | £29.64

Technical specifications

• Series: SDVU series
• Bore range: 16, 20, 25, 32, 40, 50, 63, 80 mm
• Stroke range: 10–80 mm
• Actuation: Double-acting
• Piston: Magnetic piston for position sensing
• Rod: Male-thread rod; single-rod and through-rod options
• Part number format: SDVU{Bore}X{Stroke}-B-S (e.g., SDVU16X10-B-S)
• Typical pricing shown in GBP per piece (varies by configuration)
