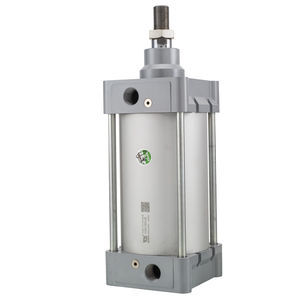

Pneumatic cylinder SDNC Series

pistonmagnetic pistondouble-acting

Product overview
Double-acting ISO-15552 profile pneumatic cylinders in the SDNC series. Magnetic and non-magnetic piston variants are offered across a wide bore and stroke range, suitable for industrial automation, packaging and process machinery applications.

Key features

• ISO-15552 compliant
• Double-acting operation
• Bore range: Ø32–Ø125 mm
• Stroke range: 25–1000 mm (multiple standard increments)
• Magnetic and non-magnetic piston options
• Adjustable cushioning
• Standard profile mounting

Available configurations and sample pricing (table)
Part Number | Bore (mm) | Stroke (mm) | Magnetic | Price (GBP)
SDNC32X25 | 32 | 25 | Non-Magnetic | £76.56
SDNC32X50 | 32 | 50 | Non-Magnetic | £81.12
SDNC32X80 | 32 | 80 | Non-Magnetic | £86.16
SDNC32X100 | 32 | 100 | Non-Magnetic | £90.75
SDNC32X125 | 32 | 125 | Non-Magnetic | £95.37
SDNC32X150 | 32 | 150 | Non-Magnetic | £100.17
SDNC32X175 | 32 | 175 | Non-Magnetic | £104.73
SDNC32X200 | 32 | 200 | Non-Magnetic | £109.23
SDNC32X250 | 32 | 250 | Non-Magnetic | £117.54
SDNC32X300 | 32 | 300 | Non-Magnetic | £125.52
SDNC32X350 | 32 | 350 | Non-Magnetic | £134.64
SDNC32X400 | 32 | 400 | Non-Magnetic | £143.73
SDNC32X450 | 32 | 450 | Non-Magnetic | £152.82
SDNC32X500 | 32 | 500 | Non-Magnetic | £162.03
SDNC32X550 | 32 | 550 | Non-Magnetic | £172.29
SDNC32X600 | 32 | 600 | Non-Magnetic | £185.46
SDNC32X650 | 32 | 650 | Non-Magnetic | £195.15
SDNC32X700 | 32 | 700 | Non-Magnetic | £204.90
SDNC32X750 | 32 | 750 | Non-Magnetic | £214.50
SDNC32X800 | 32 | 800 | Non-Magnetic | £224.01
SDNC32X850 | 32 | 850 | Non-Magnetic | £233.82
SDNC32X900 | 32 | 900 | Non-Magnetic | £243.72
SDNC32X950 | 32 | 950 | Non-Magnetic | £253.32
SDNC32X1000 | 32 | 1000 | Non-Magnetic | £263.07
SDNC40X25 | 40 | 25 | Non-Magnetic | £84.36

Notes
Series covers bore sizes Ø32, 40, 50, 63, 80, 100, 125 mm and stroke options from 25 mm up to 1000 mm with multiple standard stroke steps. Prices shown above are sample retail prices in GBP (£); many additional part-number configurations exist (magnetic and non-magnetic pistons, different bores and stroke lengths). Contact supplier for lead times and full configurator options.

Technical characteristics / specifications

• Standard: ISO-15552
• Function: Double-acting pneumatic profile cylinder
• Bore sizes: Ø32–Ø125 mm
• Stroke range: 25–1000 mm (multiple standard increments)
• Piston options: Magnetic or Non-Magnetic
• Cushioning: Adjustable
• Typical part number format: SDNC{Bore}X{Stroke} (e.g., SDNC32X25)
• Prices shown are in GBP (£)
