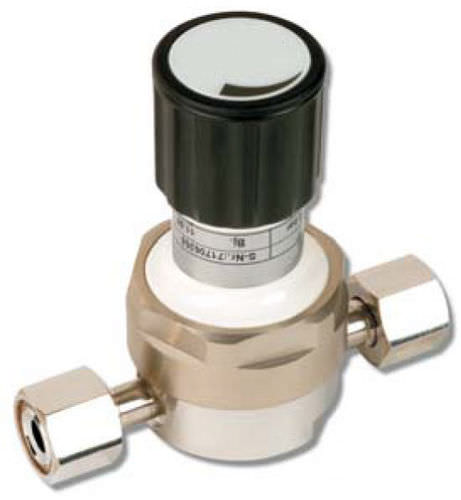

Gas pressure regulator E71-VCR
membranesingle-stagestainless steel

Gas pressure regulator - E71-VCR - Spectron Gas Control Systems GmbH - membrane / single-stage / stainless steel
Gas pressure regulator - E71-VCR - Spectron Gas Control Systems GmbH - membrane / single-stage / stainless steel
Gas pressure regulator - E71-VCR - Spectron Gas Control Systems GmbH - membrane / single-stage / stainless steel - image - 2
Gas pressure regulator - E71-VCR - Spectron Gas Control Systems GmbH - membrane / single-stage / stainless steel - image - 3
Gas pressure regulator - E71-VCR - Spectron Gas Control Systems GmbH - membrane / single-stage / stainless steel - image - 4
Add to favorites
Compare this product

Characteristics

Product
for gas
Technology
membrane
Number of stages
single-stage
Material
stainless steel, PVDF
Applications
industrial
Other characteristics
for low flow rates
Pressure

40 bar
(580.15 psi)

Description

Design optimized for low flow restriction and thorough electropolishing of the internal surfaces Minimized internal volume for short purge times All gas-wetted parts made of stainless steel SS 316L, Hastelloy C276 and PCTFE or PVDF respectively Single-stage regulator Regulator can be evacuated Internal connectors for pressure gauges High control accuracy Metal-to-metal seal to atmosphere High surface quality Connectors: In-/Outlet UNF 7/8-14 (1/2” VCR-compatible); pressure indicator ports UNF 9/16-18 (1/4” VCR-compatible) Simple outlet pressure limitation by handwheel 100 % helium-leak-tested Assembly in cleanroom class 100/10 Optional documentation acc. to SEMASPEC Model with tied diaphragm available
