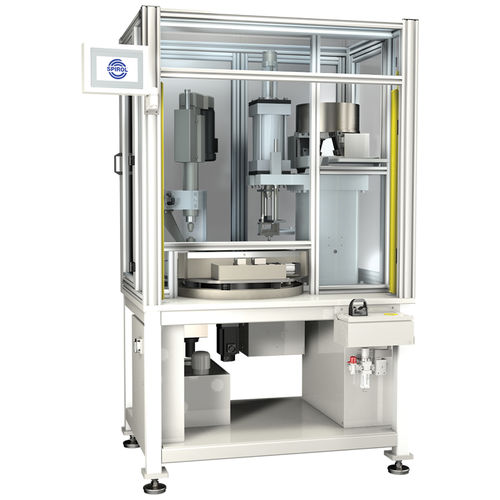

Vertical drilling and pinning machine DP

high precision

SPIROL's Model DP self-contained vertical drilling and pinning machine is ideally suited for moderate to high production applications that require accurate drilling and pinning of assemblies. The concept of drilling and pinning with one system eliminates tight tolerance and precision drilling of individual components to ensure proper alignment of holes for assembly. The Model DP Drilling and Pinning Machine consists of an automatic high-precision drilling unit, a SPIROL Model CR Heavy Duty Pin Insertion Machine and a precision air-powered linear slide unit to move the assembly between the drill unit and installation station. The Model DP Drilling and Pinning Machine can drill holes ranging in diameter from 0.8mm-6mm (.031”-.250”) and is capable of insertion forces up to 8 kN (1,800 lbs)
