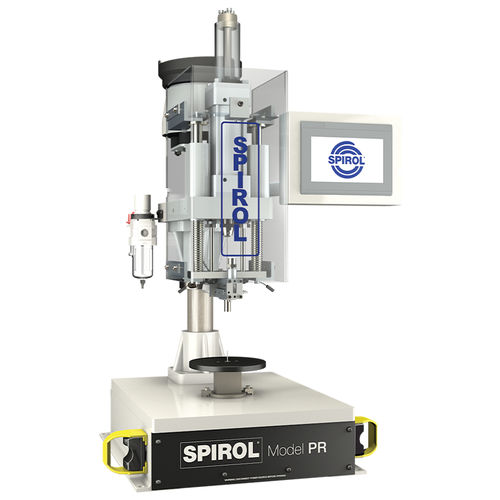

Pin insertion machine PR

semi-automatic

This versatile installation machine is suited for moderate to high production applications requiring up to 1.3 kN (300 lbs.) of installation force. The pin insertion head advances and retracts for ease of loading and unloading of the components to be pinned. The machine’s insertion bushing is positioned close to the part for smooth installation. A vibratory feeder and orientation head transfers the pin from the feeder bowl to the installation position, eliminating the need for the operator to handle the pins. A quick-clear mechanism allows for easy clearing of the feed tube without the need for tools when changing pin size or performing maintenance.
