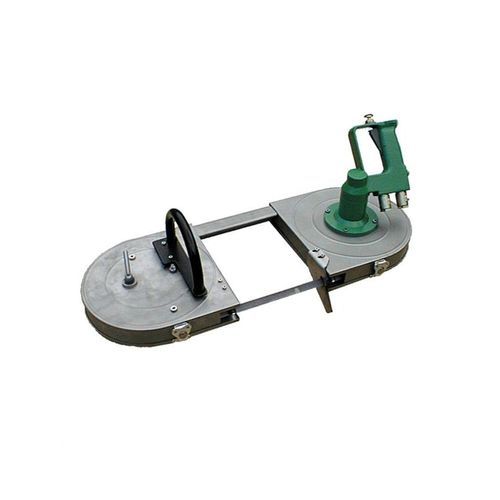

Band saw 5 6054 0010

for metalsfor steelfor pipes

Description
Compact hydraulic band saw designed for cutting tasks with increased power demand. Suitable for workshop and on-site use in energy and pipeline construction, metal and steel construction, and plant and mechanical engineering.

Main attributes

• Energy source: Hydraulic
• Operating pressure: 90-140 bar
• Cutting capacity: 7" x 9" (180 mm x 240 mm)
• ATEX: II2GExhIIBT6Gb

Technical data

• ORDER NO. — 5 6054 0010
• ATEX Specification — II2GExhIIBT6Gb
• Energy source — Hydraulic
• Operating pressure — 90-140 bar
• Volume flow — 12-50 l/min
• Power — 1.5 kW
• Free surface speed — 76 m/min
• Cutting capacity max. dia. — 180.00 mm
• Cutting capacity max. □ — 180x240 (7"x9") mm
• Total length — 838.00 mm
• Height incl. motor — 270.00 mm
• Width — 285.00 mm
• Connection — M18x1.5 mm
• Hydraulic hose connection — Flat-Star A250-OM/OF-1/2"BSP
• Hydraulic medium — Hydraulic oil
• Fluid circulation — open circuit
• Oil filtration class — ISO-level of purity 20/18/13
• Temperature of oil — -34 up to +82 °C
• Viscosity of oil — >13 centistokes
• Noise level LpA — 81.5 dB(A)
• Noise level LwA — 92.5 dB(A)
• Vibration level — 2.7 m/s²
• Weight — 16.1 kg
• Fields of application / branch — Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories
Saw blades

• 9 2506 0330 — 6/10 TPI
• 9 2506 0340 — 8/12 TPI
• 9 2506 0350 — 10/14 TPI

Miscellaneous accessories

• 2 1317 9010 — Hydraulic hose set
• 9 9902 0120 — Multi oil for cleaning and protection

Specifications

• Order number: 5 6054 0010
• ATEX specification: II2GExhIIBT6Gb
• Energy source: Hydraulic
• Operating pressure: 90-140 bar
• Volume flow: 12-50 l/min
• Power: 1.5 kW
• Free surface speed: 76 m/min
• Cutting capacity (max. dia.): 180.00 mm
• Cutting capacity (square): 180x240 mm (7"x9")
• Dimensions (L x W x H incl. motor): 838.00 mm x 285.00 mm x 270.00 mm
• Connection: M18x1.5 mm
• Hydraulic hose connection: Flat-Star A250-OM/OF-1/2"BSP
• Hydraulic medium: Hydraulic oil
• Fluid circulation: open circuit
• Oil filtration class: ISO 20/18/13
• Oil temperature range: -34 to +82 °C
• Oil viscosity: >13 centistokes
• Noise levels: LpA 81.5 dB(A), LwA 92.5 dB(A)
• Vibration level: 2.7 m/s²
• Weight: 16.1 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
