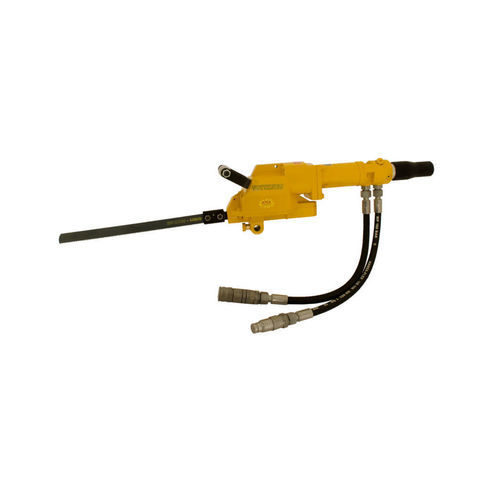

Reciprocating saw 5 1220 0010

for non-ferrous metalsfor plasticsfor metals

Product overview
Hydraulic reciprocating saw 5 1220 0010 designed for demanding industrial and underwater cutting applications. Offers variable actuation via twist throttle and compliance with ATEX II2GExhIIBT5Gb for hazardous environments.

Main attributes

• Energy source: Hydraulic
• Operating pressure: 90–140 bar
• Volume flow: 10–50 l/min
• Actuation: Twist throttle (variable speed)
• Underwater operation capable
• ATEX: II2GExhIIBT5Gb

Technical data

• Order number: 5 1220 0010
• ATEX specification: II2GExhIIBT5Gb
• Energy source: Hydraulic
• Operating pressure: 90–140 bar
• Volume flow: 10–50 l/min
• Actuation: Twist throttle
• Power: 2.8
• Stroke (free): 300 rpm
• Stroke: 60.00 mm
• Connection: M18x1.5 mm
• Hydraulic hose connection: Flat-Star A250-OM/OF-1/2 BSP
• Hydraulic medium: Hydraulic oil
• Hydraulic circuit type: open circuit
• Oil filtration class: ISO 20/18/13
• Temperature of oil: -34 up to +82 °C
• Viscosity of oil: greater than 13 centistokes
• Noise level LpA: less than 70.0 dB(A)
• Vibration level: less than 2.5 m/s²
• Weight: 10.5 kg
• Fields of application: Energy and pipeline construction; Metal and steel construction; Plant and mechanical engineering; Underwater work

Accessories (overview)
Product is supplied with a comprehensive range of accessories: multiple blade families, clamps, bow guides, extension link chains, adapters, hydraulic hoses and mounting items. Representative categories and examples are listed below.

Saw blades HSS (examples)

• 9 2501 0590 — 4 TPI — 300 mm
• 9 2501 0700 — 4 TPI — 530 mm
• 9 2501 0120 — 6 TPI — 300 mm
• 9 2501 0710 — 8 TPI — 600 mm
• 9 2501 0020 — 14 TPI — 150 mm (for non‑ferrous and stainless steels)

Saw blades HSS‑Bimetal (examples)

• 9 2501 1010 — 6 TPI — 200 mm — for plastic, cast iron
• 9 2501 1110 — 14 TPI — 200 mm — for cast iron and solid steel
• 9 2501 1140 — 14 TPI — 770 mm — heavy‑duty steel

Other blade families
Carbide‑tipped, Fast Cut and HSS‑SL variants available for heavy and abrasive materials; required blade length = max. cross‑section + 130 mm.

Clamps, guides and mounting accessories

• Pipes clamps: e.g. 5 1202 9960 (max Ø 325 mm), 5 1202 8940 (max Ø 530 mm)
• Bow guides: e.g. 5 1207 9970 (for Ø up to 325 mm), 5 1207 8910 (for Ø up to 530 mm)
• Extension link chains: 500, 1 000 and 2 000 mm variants (5 1201 9010 / 5 1201 9030 / 5 1201 9020)

Miscellaneous accessories

• Hydraulic hose set: 2 1317 9010
• Safety block (inlet pressure up to 350 bar): 2 2406 9900
• Carrying case: 5 1212 9000
• Multi oil for cleaning/protection: 9 9902 0120

Notes
Order number shown: 5 1220 0010. ATEX certification and underwater capability enable safe use in hazardous and subsea applications. Twist throttle provides variable speed control for material‑specific cutting.

Technical specifications

• Order number: 5 1220 0010
• ATEX: II2GExhIIBT5Gb
• Energy source: Hydraulic
• Operating pressure: 90–140 bar
• Volume flow: 10–50 l/min
• Actuation: Twist throttle
• Power: 2.8
• Stroke: 60.00 mm
• Stroke (free): 300 rpm
• Connection: M18x1.5 mm
• Hydraulic hose connection: Flat-Star A250-OM/OF-1/2 BSP
• Hydraulic medium: Hydraulic oil
• Hydraulic circuit: open circuit
• Oil filtration class: ISO 20/18/13
• Oil temperature range: -34 to +82 °C
• Viscosity: > 13 centistokes
• Noise level LpA: < 70.0 dB(A) (typ.)
• Vibration level: < 2.5 m/s²
• Weight: 10.5 kg
