Band saw 5 6030 0010

for metalsfor steelfor pipes

Product description

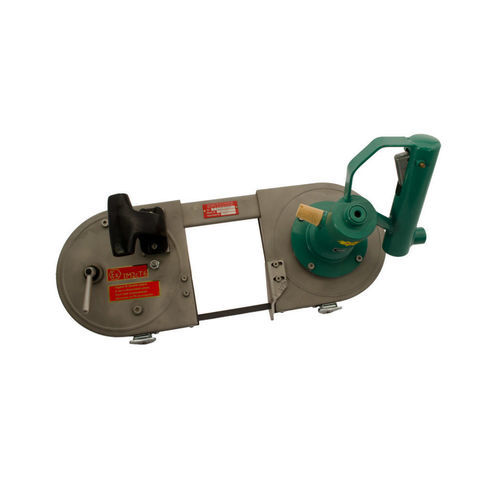

Pneumatic band saw suitable for cutting small profiles and pipes with a maximum round capacity of 107 mm and square capacity of 107x120 mm (4"x4"). ATEX certified IM2ExhIMbT6, designed for use in industrial environments.

Main features

• Energy source: compressed air
• Operating pressure: 6 bar
• Cut opening: 4" x 4" (107 mm x 120 mm)
• ATEX: IM2ExhIMbT6

Technical data

• Order number: 5 6030 0010
• ATEX marking: IM2ExhIMbT6
• Energy source: compressed air
• Operating pressure: 6 bar
• Air consumption: 0.90 m³/min
• Power: 0.70 kW
• Band speed: 65 m/min
• Max round cut Ø: 107.00 mm
• Max square cut: 107x120 mm (4"x4")
• Total length: 550.00 mm
• Height including motor: 240.00 mm
• Width: 220.00 mm
• Connection: R1/2" internal
• Sound pressure level LpA: 76.0 dB(A)
• Sound power level LWA: 85.0 dB(A)
• Vibration value: <2.5 m/s²
• Weight: 9.5 kg
• Applications / industries: plant and machine construction; mining; energy and pipeline construction; metalworking and steel construction

Accessories
Saw blades for 4"x4"

• 9 2506 0400 — 6/10 teeth per inch
• 9 2506 0040 — 8/12 teeth per inch
• 9 2506 0030 — 10/14 teeth per inch
• 9 2506 0020 — 14 teeth per inch
• 9 2506 0010 — 18 teeth per inch
• 9 2506 0050 — 24 teeth per inch

Clamping devices

• 5 6030 9000 — for cutting pipes

Other accessories

• 9 2406 0260 — Portable maintenance unit with pressure regulator 3/4"
• 9 2406 0650 — Portable maintenance unit with protective housing and pressure regulator 3/4"
• 9 9902 0120 — Multifunction oil for cleaning and protection

Characteristics / Specifications

• Order number: 5 6030 0010
• ATEX marking: IM2ExhIMbT6
• Energy source: compressed air
• Operating pressure: 6 bar
• Air consumption: 0.90 m³/min
• Power: 0.70 kW
• Band speed: 65 m/min
• Max round cut Ø: 107.00 mm
• Max square cut: 107x120 mm (4"x4")
• Total length: 550.00 mm
• Height including motor: 240.00 mm
• Width: 220.00 mm
• Connection: R1/2" internal
• Sound pressure level LpA: 76.0 dB(A)
• Sound power level LWA: 85.0 dB(A)
• Vibration value: <2.5 m/s²
• Weight: 9.5 kg
• Applications: plant and machine construction; mining; energy and pipeline construction; metalworking and steel construction
