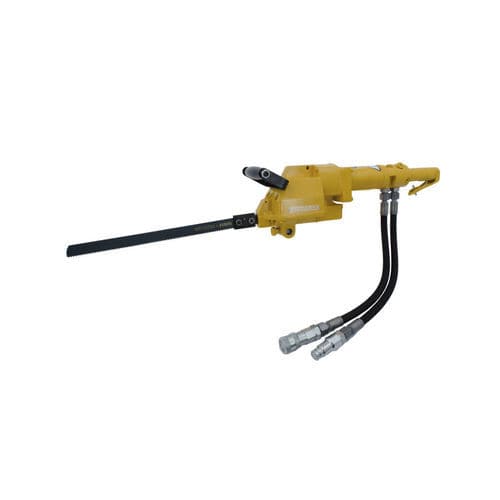

Reciprocating saw 5 1223 0050

for metalsfor steelfor pipes

Product overview
Hydraulic reciprocating saw designed for open hydraulic circuits with ATEX approval for machine group I category M2. Engineered for high cutting speed and reliable operation in demanding environments such as underground mining, pipeline and underwater applications.

Main attributes

• Energy source: Hydraulic
• Operating pressure: 90-140 bar
• Valve type / Actuation: Lever valve
• Fields of application: Underground mining
• ATEX: IM2ExhIMbT5

Technical Data (table)
ORDER NO.: 5 1223 0050
ATEX Specification: IM2ExhIMbT5
Energy source: Hydraulic
Operating pressure: 90-140 bar
Volume flow: 20-50 l/min
Actuation: Lever valve
Leistung: 2.8
Stroke (free): 330 rpm
Stroke: 60,00 mm
Connection: M18x1.5 mm
Hydraulic hose connection: Flat-Star A250-OM/OF-1/2"BSP
Hydraulic medium: Hydraulic oil
Hydraulic circuit type: open circuit
Oil filtration class: ISO-level of purity 20/18/13
Temperature of oil: -34 up to +82 °C
Viscosity of oil: >13 centistokes
Noise level LpA: <70.0 dB(A)
Vibration level: <2.5 m/s²
Weight: 13.0 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work

Accessories (overview)
Multiple accessory groups are available for this reciprocating saw, including saw blades in various materials and geometries, clamps, bow guides, extension link chains, adapters, hydraulic hoses and other service items.

• Saw blades HSS (various TPI, lengths, widths and applications)
• Saw blades HSS-Bimetal (sizes for plastic, cast iron and steel)
• Saw blades HSS-SL (for non-ferrous and stainless steels)
• Saw blades "Fast Cut" HSS and HSS-SL (standard and high quality)
• Saw blades HSS-Bimetal-VP7 (highest quality, multi-material)
• Saw blade carbide-tipped and HSS carbide coated blades (for cast iron, ductile iron, concrete-related applications)
• Clamps for pipes and profiles (multiple sizes for pipe diameters up to several hundred mm)
• Bow guides and clamps with bow guide (for controlled cutting on pipes)
• Extension link chains (lengths 500 mm, 1000 mm, 2000 mm)
• Quick spanners for clamps, tighteners
• Automatic power feed clamps (pneumatic cylinder or gas pressure spring options)
• Adapters for off-center cutting
• Hydraulic hose sets and other hydraulic accessories
• Miscellaneous accessories such as safety block (inlet pressure up to 350 bar, max. 50 l/min), carrying case, multi oil for cleaning and protection

Notes on accessories
The accessory tables list numerous order numbers, teeth-per-inch (TPI), lengths, widths, heights, quality classes and recommended application materials. For saw blade selection use: "Needed saw blade length = max. cross-section + 130 mm".

Characteristics / Technical specifications

• Order number: 5 1223 0050
• ATEX specification: IM2ExhIMbT5
• Energy source: Hydraulic
• Operating pressure: 90-140 bar
• Volume flow: 20-50 l/min
• Actuation: Lever valve
• Power (Leistung): 2.8
• Stroke (free): 330 rpm
• Stroke: 60,00 mm
• Connection: M18x1.5 mm
• Hydraulic hose connection: Flat-Star A250-OM/OF-1/2"BSP
• Hydraulic medium: Hydraulic oil
• Hydraulic circuit type: open circuit
• Oil filtration class: ISO-level of purity 20/18/13
• Temperature of oil: -34 up to +82 °C
• Viscosity of oil: >13 centistokes
• Noise level LpA: <70.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 13.0 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work
