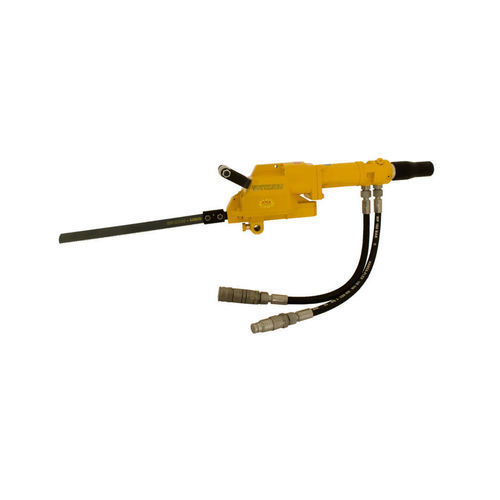

Reciprocating saw 5 1223 0010

for steelfor metalsfor pipes

Product description
Hydraulic reciprocating saw with hydraulic drive, increased cutting speed and a safety twist throttle. Designed for cutting operations in underground mining, pipeline and plant construction. Usable in ATEX area (equipment group I, category M2).

Main attributes

• Energy source: Hydraulic
• Operating pressure: 90-140 bar
• Valve / Actuation type: Twist throttle (safety twist throttle)
• Application: Underground mining
• ATEX: IM2ExhIMbT5

Technical Data (table)
ORDER NO.: 5 1223 0010
ATEX Specification: IM2ExhIMbT5
Energy source: Hydraulic
Operating pressure: 90-140 bar
Volume flow: 20-50 l/min
Actuation: Twist throttle
Power (Leistung): 2.8
Stroke (free): 330 rpm
Stroke: 60.00 mm
Connection: M18x1.5 mm
Hydraulic hose connection: Flat-Star A250-OM/OF-1/2”BSP
Hydraulic medium: Hydraulic oil
Hydraulic circuit type: open circuit
Oil filtration class: ISO-level of purity 20/18/13
Temperature of oil: -34 up to +82 °C
Viscosity of oil: >13 centistokes
Noise level LpA: <70.0 dB(A)
Vibration level: <2.5 m/s²
Weight: 13.0 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work

Accessories (categories & examples)

• Saw blades HSS (multiple ORDER NO. and lengths available)
• Saw blades HSS-Bimetal
• Saw blades HSS-SL
• Saw blades 'Fast Cut' HSS and HSS-SL
• Saw blades HSS-Bimetal-VP7
• Saw blades carbide-tipped and HSS carbide coated
• Clamps for pipes (various sizes), Bow guides, Clamp with bow guide
• Extension link chains
• Quick spanners for clamps, Tighteners
• Automatic power feed clamps (pneumatic or gas pressure spring versions)
• Clamps for profiles
• Clamps for underground roof supports
• Magnetic clamp and device for magnetic clamp (gas pressure spring for type)
• Hoses and hydraulic hose set
• Miscellaneous accessories: safety block (inlet pressure up to 350 bar, max. 50 l/min), carrying case, multi oil for cleaning and protection

Technical specifications

• Order number: 5 1223 0010
• ATEX: IM2ExhIMbT5 (usable in ATEX area of equipment group I, category M2)
• Energy source: Hydraulic
• Operating pressure: 90-140 bar
• Volume flow: 20-50 l/min
• Actuation / Valve: Twist throttle (safety twist throttle)
• Power (Leistung): 2.8
• Stroke (free): 330 rpm
• Stroke length: 60.00 mm
• Connection thread: M18x1.5 mm
• Hydraulic hose connection: Flat-Star A250-OM/OF-1/2”BSP
• Hydraulic medium: Hydraulic oil
• Hydraulic circuit: open circuit
• Oil filtration class: ISO-level of purity 20/18/13
• Oil temperature range: -34 up to +82 °C
• Oil viscosity: >13 centistokes
• Noise level LpA: <70.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 13.0 kg
• Typical fields of application: Energy & pipeline construction; Metal industry & steel construction; Plant & mechanical construction; Underwater work
