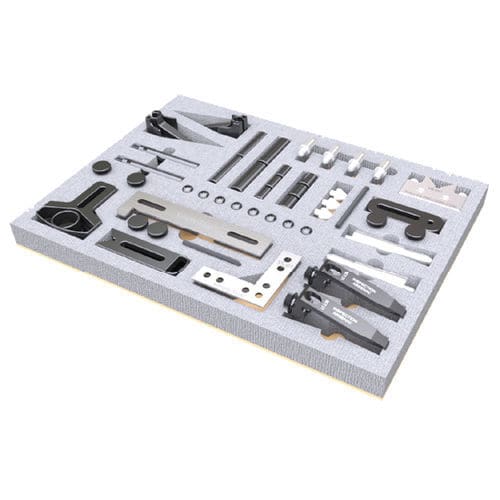

Mechanical clamping set ALUMESS.easyloc TA

for coordinate measuring machinesfor optical measuring deviceslow-profile

The ALUMESS.easyloc workholding system includes a variety of unique and versatile fixture components designed to create quick, easy and repeatable fixtures. Components include low-profile and non-marring clamps and hold downs. Heavy duty lever clamps provide additional force when necessary. Stand-offs and risers include traditional and articulating styles and magnetic rest pads and risers. Round parts can be held with v-blocks or stand-offs and hole adjusters provide infinite adjustability between threads. Low-profile stops and rails and vision corner stops. All workholding sets are delivered in foam drawer inserts. The workholding kit TA consists of: 2 x Plastic spring pusher (CRBW-30M) 2 x Plastic spring pusher (D-BLK-30M) 2 x Magnetic V-block 90° 4 x Rest bolt (25mm) 4 x Rest bolt (75mm) 2 x Steel shaft 2 x Plastic hold down clamp 2 x Hole adjuster 2 x Universal stop (SS-010SM) 2 x Universal stop (SS-07M) 3 x Stand-off (STOF-050-M20) 3 x Stand-off (STOF-075-M20) 2 x Stand-off (STOF-050-M50) 2 x Stand-off (STOF-075-M50) 3 x Plastic rest pad / cone 2 x Aluminium hold down clamp with shaft M6 21 x Hex keys, assorted screws, wrench Order no.: TR-KIT-03M
