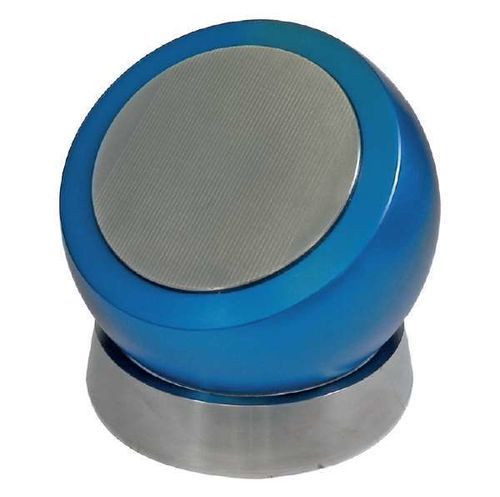

Magnetic clamping element ALUMESS ball seriesfor welding assembliesfor measuring devicescompact
Add to favorites
Compare this product
Characteristics
- Type
- magnetic
- Applications
- for measuring devices, for welding assemblies
- Other characteristics
- compact, adjustable
Description
Short description
Compact magnetic clamping ball for positioning and securing workpieces during laser welding, polishing, assembly and measurement operations.
Product details
The ALUMESS-Ball magnetic clamping balls ensure precise positioning with adjustable swivel angles up to 90° depending on workpiece geometry and weight. The Ø 80 mm magnetic head and defined pole pitch provide consistent holding force for repeatable industrial clamping tasks.
Applications
Technical data
Product number: B509800033
Type: ALUMESS-Ball 80
Ø: 80 mm
Height at 0°: 104 mm
Holding force: 80 N/cm²
Pole pitch: 1.5+0.5 mm
Weight: 4 kg
Specifications
Compact magnetic clamping ball for positioning and securing workpieces during laser welding, polishing, assembly and measurement operations.
Product details
The ALUMESS-Ball magnetic clamping balls ensure precise positioning with adjustable swivel angles up to 90° depending on workpiece geometry and weight. The Ø 80 mm magnetic head and defined pole pitch provide consistent holding force for repeatable industrial clamping tasks.
Applications
- Laser welding
- Polishing
- Assembly
- Inspection and measurement
Technical data
Product number: B509800033
Type: ALUMESS-Ball 80
Ø: 80 mm
Height at 0°: 104 mm
Holding force: 80 N/cm²
Pole pitch: 1.5+0.5 mm
Weight: 4 kg
Specifications
- Product number: B509800033
- Type (ALUMESS): ALUMESS-Ball 80
- Diameter Ø: 80 mm
- Height at 0°: 104 mm
- Holding force: 80 N/cm²
- Pole pitch: 1.5+0.5 mm
- Weight: 4 kg
