Mechanical clamping set ALUMESS.easyloc TC

for coordinate measuring machinesfor optical measuring deviceslow-profile

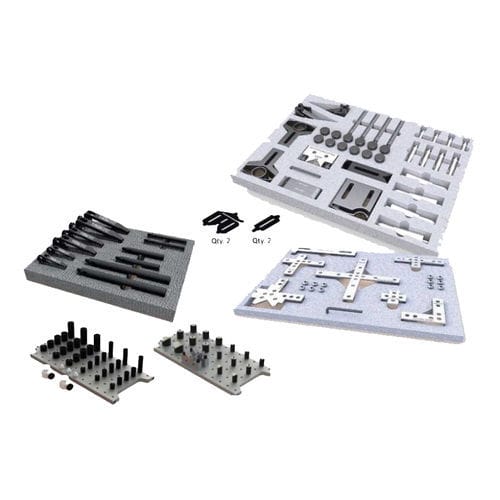

Workholding kit TC. Components include low-profile and non-marring clamps and hold downs. Heavy duty lever clamps provide additional force when necessary. Stand-offs and risers include traditional and articulating styles and magnetic rest pads and risers. Round parts can be held with v-blocks or stand-offs and hole adjusters provide infinite adjustability between threads. Low-profile stops and rails and vision corner stops. All workholding sets are delivered in foam drawer inserts. The workholding kit TC consists of: 4 x Plastic spring pusher (CRBW-30M) 4 x Plastic spring pusher (D-BLK-30M) 2 x Plastic spring pusher (TRBL-30M) 2 x Plastic hold down clamp 4 x Steel shaft 2 x Low-profile clamp 6 x Aluminium hold down clamp with shaft M6 (each 2 x LC-1.50-M, LC-2.50-M, LC-3.50-M) 4 x Rest bolt (25mm) - 4 x Rest bolt (50mm) 4 x Rest bolt (75mm) 2 x Magnetic V-block 90° 2 x Hole adjuster 7 x Universal stop (SS-01OSM, SS-02M, SS-03M, SS-04M, SS-05M, SS-06M, SS-07M) 2 x Sliding stop 1 x Stand-offs and rest pads – kit STOF-SET-30M (37 pieces) 1 x Magnetic riser – kit MAGN-SET-30M (23 pieces) 43 x Hex keys, assorted screws, wrench Order no.: TR-KIT-01M
