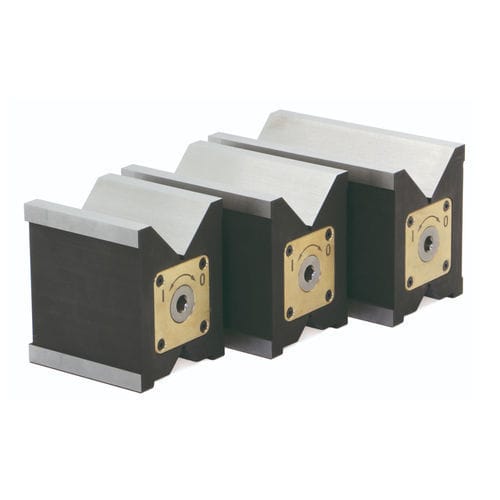

Magnetic prism SPPX

SPPX magnetic prisms are versatile workholding and positioning devices designed for measuring, grinding, EDM and assembly applications. Equipped with a powerful neodymium magnetic system, they ensure secure clamping and precise alignment of workpieces with various geometries.

Three magnetically active clamping surfaces – both prism faces and the rear surface – provide maximum flexibility. This allows workpieces to be positioned horizontally or vertically while the prism itself remains securely fixed to a metallic base plate.

The magnetic system is activated easily using the supplied 8 mm hex key with a 90° rotation. This ensures quick and convenient operation in daily use.

SPPX magnetic prisms are particularly beneficial for measuring, grinding, EDM and assembly tasks. Workpieces can be positioned directly on magnetic chuck surfaces without reducing the holding force of the machine's magnetic system.

Advantages
Powerful neodymium magnetic system
Three magnetically active clamping surfaces
Horizontal and vertical workpiece positioning
Secure fixation on metallic base plates
Easy activation using an 8 mm hex key
Ideal for measuring, grinding, EDM and assembly operations
Suitable for direct use on magnetic chucks
High flexibility for workpiece alignment
Robust and precise construction
Technical Features
Dimensions (L × W × H): 125 × 69 × 88 mm
Weight (set): 2 × 4.8 kg
Clamping diameter D1: 4 – 65 mm
Clamping diameter D2: 4 – 28 mm

SPPX magnetic prisms provide flexible and precise workholding for demanding manufacturing, metrology and tooling applications.SPPX magnetic prisms are versatile workholding and positioning devices designed for measuring, grinding, EDM and assembly applications. Equipped with a powerful neodymium magnetic system, they ensure secure clamping and precise alignment of workpieces with various geometries.

Three magnetically active clamping surfaces – both prism faces and the rear surface – provide maximum flexibility. This allows workpieces to be positioned horizontally or vertically while the prism itself remains securely fixed to a metallic base plate.

The magnetic system is activated easily using the supplied 8 mm hex key with a 90° rotation. This ensures quick and convenient operation in daily use.

SPPX magnetic prisms are particularly beneficial for measuring, grinding, EDM and assembly tasks. Workpieces can be positioned directly on magnetic chuck surfaces without reducing the holding force of the machine's magnetic system.

Advantages

• Powerful neodymium magnetic system
• Three magnetically active clamping surfaces
• Horizontal and vertical workpiece positioning
• Secure fixation on metallic base plates
• Easy activation using an 8 mm hex key
• Ideal for measuring, grinding, EDM and assembly operations
• Suitable for direct use on magnetic chucks
• High flexibility for workpiece alignment
• Robust and precise construction

Technical Features

• Dimensions (L × W × H): 125 × 69 × 88 mm
• Weight (set): 2 × 4.8 kg
• Clamping diameter D1: 4 – 65 mm
• Clamping diameter D2: 4 – 28 mm

SPPX magnetic prisms provide flexible and precise workholding for demanding manufacturing, metrology and tooling applications.
