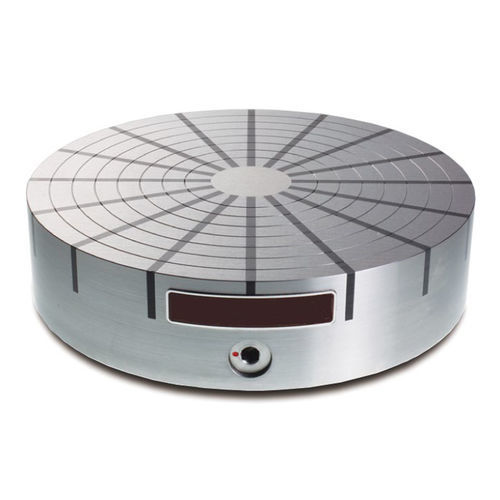

Permanent magnet magnetic chuck SPNR

circularroundfor grinding

Short description Permanent magnetic circular chuck for grinding and turning. Particularly suitable for annular workpieces and for hard machining of turned parts.

Available types / variants

• SPNR 10
• SPNR 13
• SPNR 15
• SPNR 16
• SPNR 20
• SPNR 25
• SPNR 30
• SPNR 32
• SPNR 35
• SPNR 40
• SPNR 50
• SPNR 60

Configurator options

• Type: SPNR (selection of sizes listed above)
• H [mm] available: 60, 80, 95 (selected: 80 for this variant)

Product details
Permanent magnetic circular chuck for grinding and turning. Particularly suitable for annular workpieces and for hard machining of turned parts.

Technical details (table)
Product number: B900501486
K [mm]: 4
M [mm]: 12
N [mm]: 6
Weight [kg]: 50
ØD1 [mm]: 320
ØD2 [mm]: 250
ØD3 [mm]: 270
Type: SPNR 32
H [mm]: 80

Characteristics / technical specifications

• Product number: B900501486
• Type / Model: SPNR 32
• K [mm]: 4
• M [mm]: 12
• N [mm]: 6
• Weight: 50 kg
• ØD1: 320 mm
• ØD2: 250 mm
• ØD3: 270 mm
• H: 80 mm
• Intended use: grinding and turning, especially suitable for rings and hard machining of turned parts
