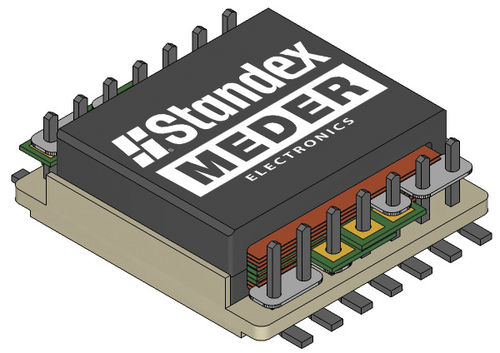

Isolation transformer P075single-phasethrough-holeplanar
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Electrical characteristics
- single-phase
- Mounting
- through-hole
- Other characteristics
- planar
- Electric power
Max.: 500 W
(0.6798 hp)Min.: 100 W
(0.136 hp)
Description
Rated power 100W-500W / Frequency range 150-300kHZ
Surface mount (SMD) or through hole (TH)
Topology - Full Bridge, Half Bridge, Full Bridge ZVS,
Push-Pull, Flyback
Current rating max. SMD=50A, TH = +30%
Isolation voltage pri-sec/pri-core 500-5,000VDC
Soft switching, single or multiple outputs
Different switching frequencies, input/output voltages
Primary turns - other number (no fractions)
Secondary Ns1, Ns2 / Ns3 turns 1- 8 (no fractions)
Thermal solutions heat sinks, etc.
