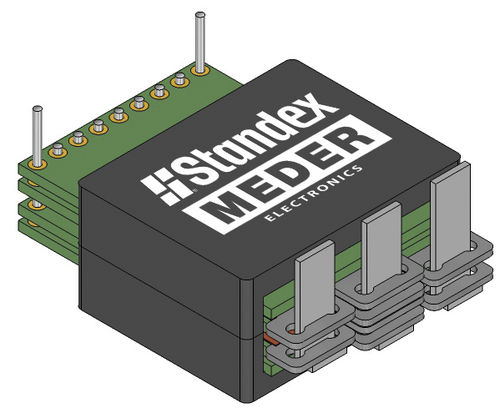

Isolation transformer P135single-phaseSMDplanar
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Electrical characteristics
- single-phase
- Mounting
- SMD
- Other characteristics
- planar
- Electric power
Max.: 1,200 W
(1.6315 hp)Min.: 300 W
(0.4079 hp)
Description
Rated power 300W-1.2kW / Frequency range 100-250kHZ
Topology - Full Bridge, Half Bridge, Full Bridge ZVS,
Push-Pull
Current rating max. SMD=100A, TH = +30%
Isolation voltage pri-sec/pri-core 500-5,000VDC
Soft switching, single or multiple outputs
Different switching frequencies, input/output voltages
Primary turns - other number (no fractions)
Secondary Ns1, Ns2 / Ns3 turns 1- 8 (no fractions)
Thermal solutions heat sinks, etc.
