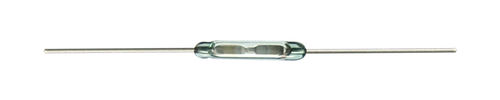

Miniature reed switch KSK-1A87
Add to favorites
Compare this product
Characteristics
- Size
- miniature
Description
Miniature reed switch featuring long life with a glass length of 10.0mm and diameter of 2.0mm. Rated power 10 W, Switching voltage 200 V DC, Switching current 0.5 Amp DC. UL approval.
Specifications:
Overall Length mm (inches) 35.5 (1.397)
Glass Length Max. mm (inches) 10.0 (0.394)
Glass Dia. Max. mm (inches) 2.00 (0.078)
Lead Dia. mm (inches) 0.4 (0.015)
Contact Form 1A (SPST) Normally Open (N.O.)
Pull-In Range 10-40 AT
Rated Power Max. 10 W/200 V DC/0.5 Amp DC
Applications:
General purpose, automotive, test and measurement (ATE)
