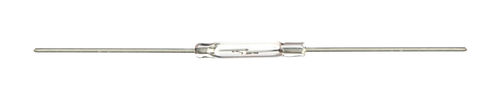

Miniature reed switch PR560
Add to favorites
Compare this product
Characteristics
- Size
- miniature
Description
The PR560 is a high power reed switch and miniature reed switch with glass length of 14.2mm and diameter of 2.3mm. Rated power 10 W, Switching voltage 250 V AC/100 V DC, Switching current 1 Amp DC/AC.
Specifications
Overall Length mm (inches) 54.0 (2.125)
Glass Length Max. mm (inches) 14.2 (0.559)
Glass Dia. Max. mm (inches) 2.30 (0.090)
Lead Dia. mm (inches) 0.6 (0.023)
Contact Form 1A (SPST) Normally Open (N.O.)
Pull-In Range 20-40 AT
Rated Power Max. 10 W/250 V AC/100V DC/1 Amp DC/AC
