- High-voltage reed relay
- StandexMeder Electronics GmbH

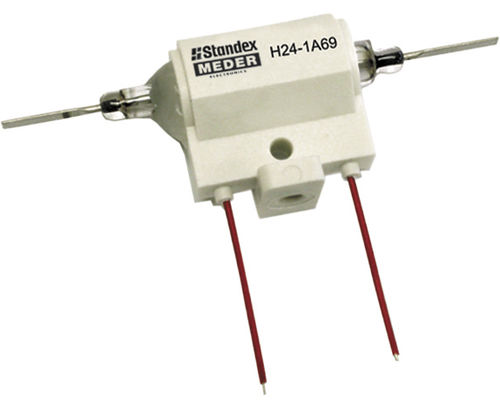

High-voltage reed relay H
Add to favorites
Compare this product
Characteristics
- Other characteristics
- high-voltage
- Switching current
3 A
Description
The H Series high voltage reed relay is capable of switching up to 10kVDC and breakdown voltage of 15kVDC. This high voltage reed relay is designed with a specially packaged coil with a PCB pin out for the coil only. The switch contacts are available for direct wiring (sky wiring). Replacement for mercury wetted relay.
Specifications
Coil Voltage (VDC) 12, 24
Coil Resistance (Ω) 230-700
Contact Form 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.)
Rated Power Max. 50W/10000VDC/3A
