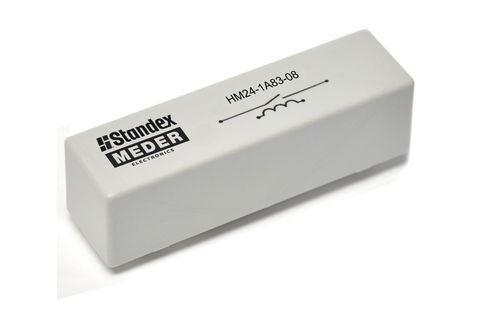

High-voltage reed relay HM
Add to favorites
Compare this product
Characteristics
- Other characteristics
- high-voltage
- Switching current
3 A
Description
The HM Series high voltage reed relay is capable of switching up to 10kVDC and breakdown voltage of 15kVDC with a leakage distance >32mm. This high voltage reed relay is epoxy encapsulated with many PCB pin configurations available. Options include high voltage wires available for direct wiring of the high voltage leads. Replacement for mercury wetted relay. Latching version also available.
Specifications
Coil Voltage (VDC) 5, 12, 24
Coil Resistance (Ω) 10-1650
Contact Form 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1E Latching/Bistable
Rated Power Max. 50W/10000VDC/3A
Catalogs
HM SERIES REED RELAY
3 Pages
