Round suction cup PV1

TPVfor gripping

Product

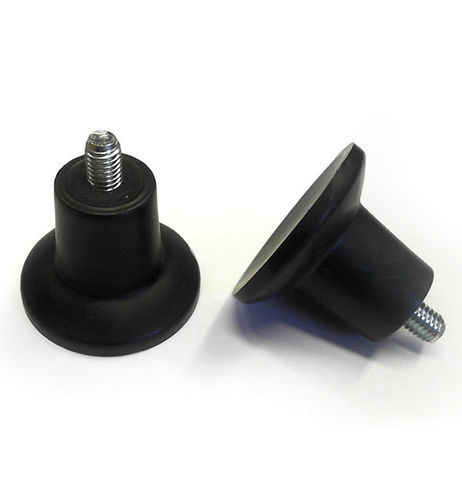

PV1 suction cup foot with threaded pin

Overview

• Thermoplastic elastomer foot with a suction-cup profile engineered for mechanical resistance and reliable grip on smooth surfaces.
• Designed for mounting with a threaded pin/screw (standard M8).

Material
Thermoplastic vulcanizate (TPV) offering high mechanical resistance and elasticity suitable for industrial applications.

Screw / Fastening
Standard fastening: zinc-passivated steel screw/pin. Alternatives available in stainless steel, brass or nylon. Customised screws, studs or rods can be supplied on request.

Colour
Standard black. Other colours available for suitable order quantities.

Certifications / Compliance

• RoHS compliant
• REACH compliant
• Rated/indicated up to 70 degrees (as per product labelling)

Available variants (table)
SUCTION CUP FOOT WITH THREADED PIN, MODEL PV1
CODE | ITEM | A | B | D | E | PCS BOX
EMPV450810 | PV1/45/V - M8x10 | 46 | 35 | M8 | 10 | 100
EMPV450815 | PV1/45/V - M8x15 | 46 | 35 | M8 | 15 | 100
EMPV450820 | PV1/45/V - M8x20 | 46 | 35 | M8 | 20 | 100
EMPV450825 | PV1/45/V - M8x25 | 46 | 35 | M8 | 25 | 100
EMPV450830 | PV1/45/V - M8x30 | 46 | 35 | M8 | 30 | 100

Notes
Standard screw material is zinc-passivated steel; alternative materials and customised fastening options available upon request.

Characteristics / Technical specifications

• Model: PV1
• Material: Thermoplastic elastomer (TPV)
• Screw / Thread: M8 standard (available screw lengths: 10, 15, 20, 25, 30 mm)
• Overall dimensions (typical for listed variants): A = 46 mm, B = 35 mm
• Packaging: 100 pcs per box (for listed codes)
• Colour: Black (other colours available for suitable quantities)
• Compliance: RoHS, REACH
