Operating handwheel VD1

controlwith rotary handledisc

Product name

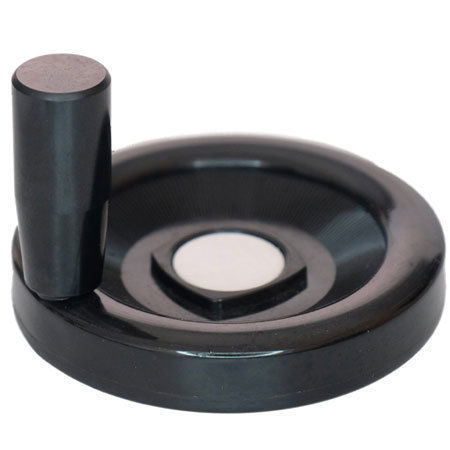

VD1 disc handwheel with blind smooth hole and swivel grip.

Short description
Disc handwheel VD1 with blind smooth hole and swivel grip, suitable for machine controls and adjustment applications.

Materials and components

• MATERIAL: Thermoplastic with high mechanical resistance. Heat-resistant materials or other resistance grades available on request.
• HUB: Zinc passivated steel.
• STUD: Zinc passivated steel.
• HANDGRIP: Thermosetting material.
• FIXING TAB: Anodised aluminium colour.
• COLOUR: Black. Other colours available for suitable production lots.
• COMPLIANCE: RoHS and REACH.

Table - DISC-SHAPED FLYWEIGHT WITH SMOOTH BLIND HOLE AND ROTATING HANDLE, MODEL VD1
CODE | ITEM | A | B | C | D | E | F | G | H | I | L | M | N | O | PCS BOX
EMVD1100MG | VD1/100/M/BLC - D8 | 100 | 38 | 20 | 16 | 30 | 24 | 8 | 30 | 25 | 12 | M6 | 51 | 21 | 10

Notes
The product is supplied in versions identified by codes (example above). Special materials (higher heat resistance or other grades) and colours are available on request for appropriate production lots.

Technical specifications

• Model: VD1
• Typical article: VD1/100/M/BLC - D8 (code EMVD1100MG)
• Dimensions (mm) example: A=100, B=38, C=20, D=16, E=30, F=24, G=8, H=30, I=25, L=12, N=51, O=21
• Thread/Insert: M6 (example)
• Pieces per box (example): 10
• Body material: Thermoplastic (standard). Options for heat-resistant or other grades on request.
• Hub and stud: Zinc passivated steel.
• Handgrip: Thermosetting material.
• Fixing tab: Anodised aluminium colour.
• Standard colour: Black (other colours for suitable lots).
• Compliance: RoHS and REACH.
