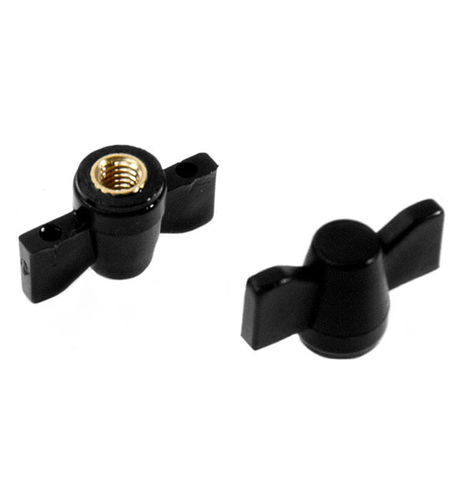

Wing nut G1

thermoplasticthreadedmetric

Product
G1

Product type
Wing nut with blind tapped bushing

Materials

• Thermoplastic with a high mechanical resistance
• Heat resistant materials or materials with other resistance grades available upon demand

Bushing
Ot58 brass. Bushings made of other materials are available. For special uses, handwheels can be supplied with customised bushings.

Colour
Black. Wide range of colours available for suitable quantities.

Certifications

• RoHS compliant
• REACH compliant

Table - Model G1 (codes / dimensions / pcs per box)
CODE | ITEM | A | B | C | D | E | PCS BOX
EMG1300400 | G1/30/BFC - M4 | 30 | 15 | 13 | M4 | 8 | 100
EMG1300500 | G1/30/BFC - M5 | 30 | 15 | 13 | M5 | 8 | 100
EMG1300600 | G1/30/BFC - M6 | 30 | 15 | 13 | M6 | 8 | 100
EMG1300800 | G1/30/BFC - M8 | 30 | 15 | 13 | M8 | 8 | 100

Characteristics / technical specifications

• Model: G1
• Product: Wing nut with blind tapped bushing
• Primary material: Thermoplastic (high mechanical resistance)
• Optional materials: Heat resistant grades and other resistance grades on request
• Bushing material: Ot58 brass (other materials available; customised bushings possible)
• Standard colour: Black (custom colours for suitable quantities)
• Certifications: RoHS, REACH
• Available sizes / codes and dimensions shown in the table above (codes EMG1300400, EMG1300500, EMG1300600, EMG1300800)
• Packaging: 100 pcs per box for the listed variants
