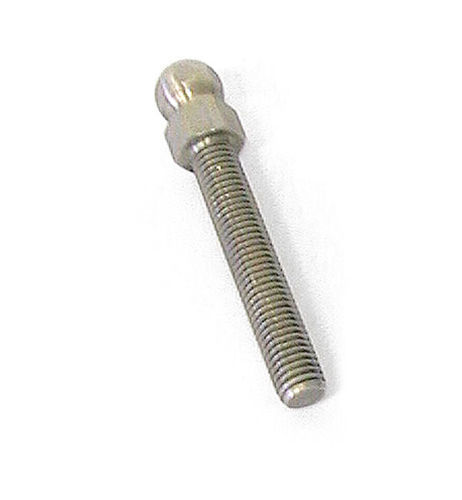

Headed pin PPS-X

stainless steelbrassprecision

Short description
Screw for articulated foot. Material: 303 stainless steel. Brass screws available on request. For special applications, can be supplied with customised screws, studs or rods.

Certifications / Materials
ROHS compliant
REACH compliant
Material: 303 stainless steel

Available items (table)
CODE | ITEM | A | B | C | D | PCS BOX
PPSX1408045 | PPS-X/M8x45 | 45 | M8 | 14 | 13,8 | 16
PPSX1408070 | PPS-X/M8x70 | 70 | M8 | 14 | 13,8 | 16
PPSX1410045 | PPS-X/M10x45 | 45 | M10 | 14 | 13,8 | 16
PPSX1410070 | PPS-X/M10x70 | 70 | M10 | 14 | 13,8 | 16
PPSX1410100 | PPS-X/M10x100 | 100 | M10 | 14 | 13,8 | 8
PPSX1412045 | PPS-X/M12x45 | 45 | M12 | 14 | 13,8 | 16
PPSX1412070 | PPS-X/M12x70 | 70 | M12 | 14 | 13,8 | 16
PPSX1412100 | PPS-X/M12x100 | 100 | M12 | 14 | 13,8 | 8
PPSX1412125 | PPS-X/M12x125 | 125 | M12 | 14 | 13,8 | 8
PPSX1414075 | PPS-X/M14x75 | 75 | M14 | 16 | 13,8 | 8
PPSX1414125 | PPS-X/M14x125 | 125 | M14 | 16 | 13,8 | 8
PPSX1416060 | PPS-X/M16x60 | 60 | M16 | 16 | 13,8 | 8
PPSX1416110 | PPS-X/M16x110 | 110 | M16 | 16 | 13,8 | 8
PPSX1416145 | PPS-X/M16x145 | 145 | M16 | 16 | 13,8 | 8
PPSX1416175 | PPS-X/M16x175 | 175 | M16 | 16 | 13,8 | 4
PPSX1916060 | PPS-X/M16x60 | 60 | M16 | 20 | 18,8 | 8
PPSX1916110 | PPS-X/M16x110 | 110 | M16 | 20 | 18,8 | 8
PPSX1916145 | PPS-X/M16x145 | 145 | M16 | 20 | 18,8 | 8
PPSX1916175 | PPS-X/M16x175 | 175 | M16 | 20 | 18,8 | 4
PPSX1920075 | PPS-X/M20x75 | 75 | M20 | 20 | 18,8 | 4

Notes
Product: articulated foot pin, model PPS-X. Material specified as 303 stainless steel. Brass screws available on request. Customised screws, studs or rods can be supplied for special uses.

Characteristics / technical specifications

• Model: PPS-X
• Product type: Articulated foot pin / screw
• Material: 303 stainless steel
• Screw options: standard stainless steel; brass screws available; customised screws/studs/rods on request
• Available sizes and codes: see table above (CODE / ITEM / A / B / C / D / PCS BOX)
• Certifications: ROHS compliant, REACH compliant
