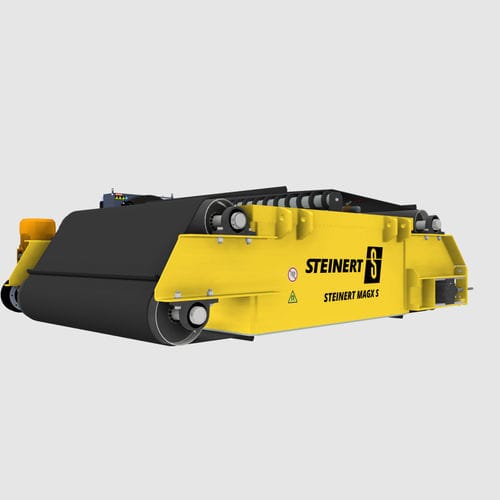

Coal separator MAGX S

flowself-cleaningcompact

STEINERT MAGX S overhead suspension magnets are designed to remove tramp iron efficiently and effectively in extreme environmental conditions The worldwide processing of ores and coal requires the effective removal of tramp iron at very high throughputs. Electromagnets from STEINERT are characterised by their extremely strong and extensive magnetic fields. The pronounced depth effectiveness of these electromagnets means that tramp iron can be reliably collected even from deep layer thicknesses. They provide protection to the crushing and comminution circuit, limiting wear and damage of this critical circuit. These self-cleaning overhead suspension magnets are either attached longitudinally above a head pulley in the supply direction or laterally at a fixed working distance above the supply flow. The magnetic separator is equipped with a circulating belt that ensures continuous removal of the extracted ferrous parts such as screws, nuts, bolts, rods and cutting heads. Uninterrupted sorting is possible when equipped with this self-cleaning functionality. These magnets have proven themselves for decades even at high belt speeds and large belt widths. The special design of the STEINERT MAGX S using coils made of anodised ANOFOL® aluminium strip and an oil filling provides consistent and efficient cooling, thus reducing the risk of a burnt coil. Our special coil design also results in a maximum number of windings with a simultaneously compact design. An external expansion vessel is not required for the cooling liquid. Passive cooling may be sufficient for smaller sizes as needed, whilst we equip your large series with an active cooling system.
