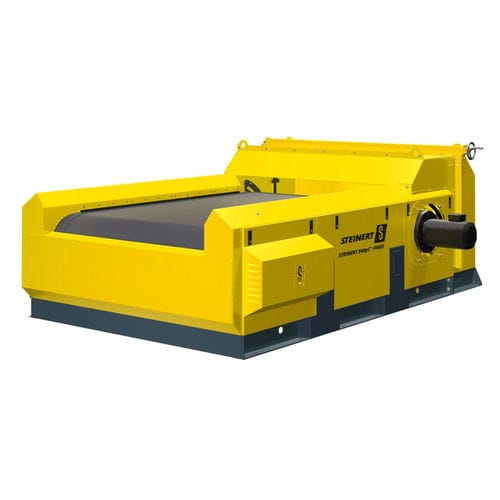

Non-ferrous metal separator EddyC® FINES

eddy currentrotaryfor fine material

Precise sorting of fines grains with the STEINERT EddyC FINES non-ferrous metal separator thanks to its new separating splitter The design of our new STEINERT EddyC combines things that have been tried and tested with innovation in the separation of non-ferrous metals. STEINERT also continues to rely on the established eccentrically mounted magnetic pole system with powerful neodymium-iron-boron magnets and robust construction of all machine elements in its eddy current separators. The core features of the new STEINERT EddyC model series are a self-supporting frame construction allowing faster belt replacement, variable adjustment of the pole system's application point, optimised accessibility to and overview of the separation area and a fundamentally revised external design. The conveyor belt can be replaced in just 10 minutes due to the self-supporting, C-shaped design. Further advantages: an additional hoist is no longer required and the machine side for belt replacement can be chose at will when ordering. The equipment features specifically developed for the fine grain range distinguish our STEINERT EddyC FINES eddy current separator. We have used a so-called fine pole system in this type, since above all it is the alternating pole frequency that is important for inducing eddy-currents in small particle sizes. This enables high-frequency changes in polarity at up to 1.3 kHz with a pole system rotation speed of up to 4,000 rpm.
