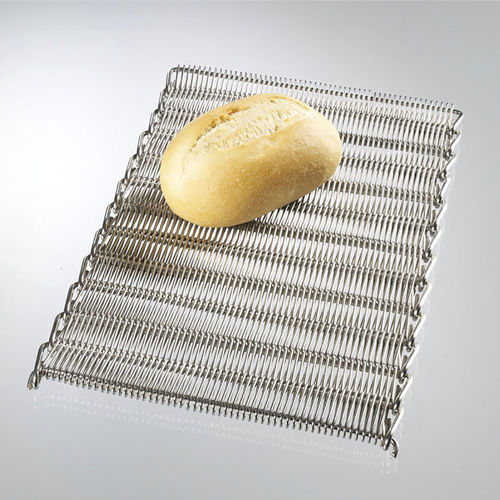

Braided link belt of Group 200
This round wire link belt consists of round wire spirals densely braided in alternate right and left directions. The cross bars are smooth or optionally ribbed.
Round wire link belts are used in continuous furnaces or drying installations, for conveying cast products or for bread baking and can be produced in a width of up to 5,000 mm. They can withstand temperatures of -100°C to +1200 °C.
Specifications:
Spirals (round wire): 0.7 – 5.0 mm
Cross bars: 1.2 – 8.0 mm
Pitch: 6.0 – 63.0 mm
