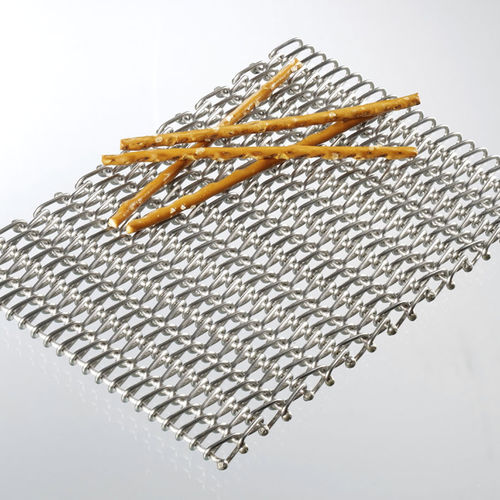

Wire mesh conveyor belt 400

nickel steelchrome steelmild steel

Braided link belt of Group 400 This braided link belt consists of round wire spirals widely braided in alternate right and left directions. The cross bars are corrugated. The braided link belt is used for glass and briquette cooling, baking and roasting ovens and deep freeze installations. These belts can be produced in a width of up to 6,000 mm. They can withstand temperatures of -100°C to +1200 °C. Specification: Spirals (round wire): 0.7 – 5.0 mm Cross bars: 1.2 – 8.0 mm Pitch: 2.0 – 50.0 mm Pitch: 2.7 – 80.0 mm
