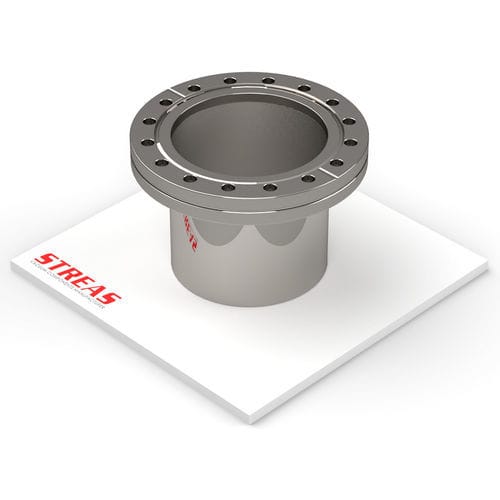

Tube flange FT seriesstainless steelweld
Add to favorites
Compare this product
Characteristics
- Applications
- tube
- Material
- stainless steel
- Other characteristics
- weld
- Nominal diameter
Max.: 350 mm
(13.78 in)Min.: 16 mm
(0.63 in)
Description
Welded flange to tube; assembly tightened with bolts.
Articles:
Characteristics / technical specifications:
Articles:
- FT16CF-18-35-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 16
- A: 34 mm
- B: 27 mm
- C: 35 mm
- D: 18 mm
- Stock: High availability
- FT25CF-25_4-50-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 25
- A: 54 mm
- B: 41.3 mm
- C: 50 mm
- D: 25.4 mm
- Stock: Low availability
- FT38CF-38-60-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 38
- A: 70 mm
- B: 58.7 mm
- C: 60 mm
- D: 38 mm
- Stock: Medium availability
- FT38CF-42_4-60-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 38
- A: 70 mm
- B: 58.7 mm
- C: 60 mm
- D: 42.4 mm
- Stock: High availability
- FT38CF-44_5-60-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 38
- A: 70 mm
- B: 58.7 mm
- C: 60 mm
- D: 44.5 mm
- Stock: Medium availability
- FT50CF-50_8-80-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 50
- A: 85 mm
- B: 72.4 mm
- C: 80 mm
- D: 50.8 mm
- Stock: Medium availability
- FT63CF-70-90-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 63
- A: 114 mm
- B: 92.2 mm
- C: 90 mm
- D: 70 mm
- Stock: High availability
- FT75CF-76-90-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 75
- A: 117 mm
- B: 102.3 mm
- C: 90 mm
- D: 76 mm
- Stock: Low availability
- FT100CF-104-100-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 100
- A: 152 mm
- B: 130.3 mm
- C: 100 mm
- D: 104 mm
- Stock: High availability
- FT125CF-129-100-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 125
- A: 171.5 mm
- B: 151.6 mm
- C: 100 mm
- D: 129 mm
- Stock: Low availability
- FT150CF-154-120-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 150
- A: 202 mm
- B: 181 mm
- C: 120 mm
- D: 154 mm
- Stock: High availability
- FT200CF-204-120-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 200
- A: 253 mm
- B: 231.8 mm
- C: 120 mm
- D: 204 mm
- Stock: High availability
- FT250CF-254-150-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 250
- A: 306 mm
- B: 284 mm
- C: 150 mm
- D: 254 mm
- Stock: High availability
- FT275CF-273-150-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 275
- A: 336 mm
- B: 306 mm
- C: 150 mm
- D: 273 mm
- Stock: Low availability
- FT295CF-306-200-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 295
- A: 355.6 mm
- B: 325.4 mm
- C: 200 mm
- D: 306 mm
- Stock: Low availability
- FT300CF-306-200-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 300
- A: 368 mm
- B: 338.1 mm
- C: 200 mm
- D: 306 mm
- Stock: Medium availability
- FT350CF-356-200-4
- Materials: AISI 304
- Finish: External mechanical polish, internal raw
- DN: 350
- A: 419.1 mm
- B: 388.9 mm
- C: 200 mm
- D: 356 mm
- Stock: Medium availability
Characteristics / technical specifications:
- Line: CF
- Line type: CF
- Product type: Flanges
- Material available: AISI 304
- Finish: External mechanical polish and internal raw
- Assembly / tightening: by bolts
- Variants and dimensions: see "Articles" list with codes and dimensions (A, B, C, D in mm)
