Pipe welding flange FGT series

for pipesstainless steelrotary

Description

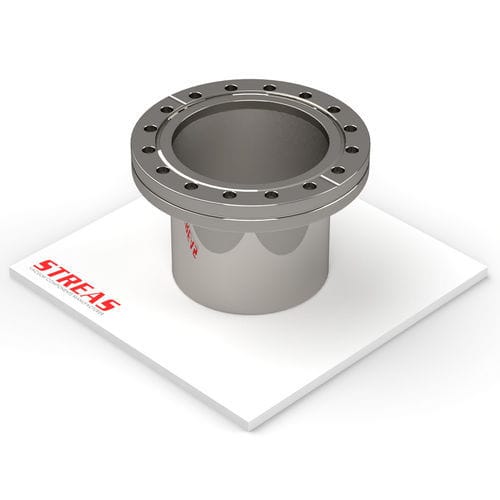

Welded flange to a pipe with a perforated part that can rotate relative to the lug fixed to the pipe, enabling straightforward mounting and assembly; tightening is performed with screws. Available in AISI 304.

Available items

• Code: FGT16CF-F-18-35-4 — DN: 16 — A: 34 mm (1.339 in) — B: 27 mm (1.063 in) — C: 35 mm (1.378 in) — D: 18 mm (0.709 in)
• Code: FGT25CF-F-25_4-50-4 — DN: 25 — A: 54 mm (2.126 in) — B: 41,3 mm (1.626 in) — C: 50 mm (1.969 in) — D: 25,4 mm (1 in)
• Code: FGT38CF-F-38-60-4 — DN: 38 — A: 70 mm (2.756 in) — B: 58,7 mm (2.311 in) — C: 60 mm (2.362 in) — D: 38 mm (1.496 in)
• Code: FGT38CF-F-42_4-60-4 — DN: 38 — A: 70 mm (2.756 in) — B: 58,7 mm (2.311 in) — C: 60 mm (2.362 in) — D: 42,4 mm (1.669 in)
• Code: FGT38CF-F-44_5-60-4 — DN: 38 — A: 70 mm (2.756 in) — B: 58,7 mm (2.311 in) — C: 60 mm (2.362 in) — D: 44,5 mm (1.752 in)
• Code: FGT50CF-F-50_8-80-4 — DN: 50 — A: 85 mm (3.346 in) — B: 72,4 mm (2.85 in) — C: 80 mm (3.15 in) — D: 50,8 mm (2 in)
• Code: FGT63CF-F-70-90-4 — DN: 63 — A: 113 mm (4.449 in) — B: 92,2 mm (3.63 in) — C: 90 mm (3.543 in) — D: 70 mm (2.756 in)
• Code: FGT75CF-F-76-90-4 — DN: 75 — A: 117 mm (4.606 in) — B: 102,4 mm (4.031 in) — C: 90 mm (3.543 in) — D: 76 mm (2.992 in)
• Code: FGT100CF-F-104-100-4 — DN: 100 — A: 152 mm (5.984 in) — B: 130,3 mm (5.13 in) — C: 100 mm (3.937 in) — D: 104 mm (4.094 in)
• Code: FGT125CF-F-129-100-4 — DN: 125 — A: 171,5 mm (6.752 in) — B: 151,6 mm (5.969 in) — C: 100 mm (3.937 in) — D: 129 mm (5.079 in)
• Code: FGT150CF-F-154-120-4 — DN: 150 — A: 202 mm (7.953 in) — B: 181 mm (7.126 in) — C: 120 mm (4.724 in) — D: 154 mm (6.063 in)
• Code: FGT200CF-F-204-120-4 — DN: 200 — A: 253 mm (9.961 in) — B: 231,8 mm (9.126 in) — C: 120 mm (4.724 in) — D: 204 mm (8.031 in)
• Code: FGT250CF-F-254-150-4 — DN: 250 — A: 306 mm (12.047 in) — B: 284 mm (11.181 in) — C: 150 mm (5.906 in) — D: 254 mm (10 in)
• Code: FGT275CF-F-273-150-4 — DN: 275 — A: 336 mm (13.228 in) — B: 306,3 mm (12.059 in) — C: 150 mm (5.906 in) — D: 273 mm (10.748 in)
• Code: FGT295CF-F-306-200-4 — DN: 295 — A: 355,6 mm (14 in) — B: 325,4 mm (12.811 in) — C: 200 mm (7.874 in) — D: 306 mm (12.047 in)
• Code: FGT300CF-F-306-200-4 — DN: 300 — A: 368 mm (14.488 in) — B: 338,1 mm (13.311 in) — C: 200 mm (7.874 in) — D: 306 mm (12.047 in)
• Code: FGT350CF-F-356-200-4 — DN: 350 — A: 419,1 mm (16.5 in) — B: 388,8 mm (15.307 in) — C: 200 mm (7.874 in) — D: 356 mm (14.016 in)

Characteristics / Technical specifications

• Series: CF
• Line type: CF
• Product type: Flanges
• Material available: AISI 304
• Finish: external mechanical polish and raw internal surface
• Function: welded pipe flange with a rotating perforated part for assembly and tightening with screws
• Variants: multiple sizes available (DN 16 → DN 350) with dimensions A, B, C, D listed for each product code
• Technical documentation available (product sheet and technical datasheet in PDF)
