Pipe welding flange FGT series
tubestainless steelweld

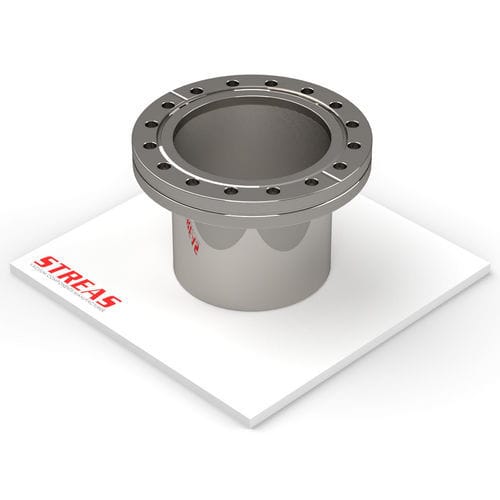

Pipe welding flange - FGT series - Streas srl - tube / stainless steel / weld
Pipe welding flange - FGT series - Streas srl - tube / stainless steel / weld
Pipe welding flange - FGT series - Streas srl - tube / stainless steel / weld - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Applications
tube, for pipe welding
Material
stainless steel
Other characteristics
weld, clamping, rotary
Nominal diameter

Max.: 350 mm
(13.78 in)

Min.: 16 mm
(0.63 in)

Description

Description: Welded flange to a tube: the slotted (perforated) part can rotate relative to the tab integral with the tube, ensuring easy installation and assembly. Clamping is performed with bolts. Available in AISI 304.

Available items (complete table):
  • Code: FGT16CF-18-35-4 — Availability: High availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 16 — A: 34 mm (1.339 inch) — B: 27 mm (1.063 inch) — C: 35 mm (1.378 inch) — D: 18 mm (0.709 inch) — E: - — F: -
  • Code: FGT25CF-25_4-50-4 — Availability: High availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 25 — A: 54 mm (2.126 inch) — B: 41.3 mm (1.626 inch) — C: 50 mm (1.969 inch) — D: 25.4 mm (1 inch) — E: - — F: -
  • Code: FGT38CF-38-60-4 — Availability: Medium availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 38 — A: 70 mm (2.756 inch) — B: 58.7 mm (2.311 inch) — C: 60 mm (2.362 inch) — D: 38 mm (1.496 inch) — E: - — F: -
  • Code: FGT38CF-42_4-60-4 — Availability: High availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 38 — A: 70 mm (2.756 inch) — B: 58.7 mm (2.311 inch) — C: 60 mm (2.362 inch) — D: 42.4 mm (1.669 inch) — E: - — F: -
  • Code: FGT38CF-44_5-60-4 — Availability: Medium availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 38 — A: 70 mm (2.756 inch) — B: 58.7 mm (2.311 inch) — C: 60 mm (2.362 inch) — D: 44.5 mm (1.752 inch) — E: - — F: -
  • Code: FGT50CF-50_8-80-4 — Availability: Medium availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 50 — A: 85 mm (3.346 inch) — B: 72.4 mm (2.85 inch) — C: 80 mm (3.15 inch) — D: 50.8 mm (2 inch) — E: - — F: -
  • Code: FGT63CF-70-90-4 — Availability: High availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 63 — A: 113 mm (4.449 inch) — B: 92.2 mm (3.63 inch) — C: 90 mm (3.543 inch) — D: 70 mm (2.756 inch) — E: - — F: -
  • Code: FGT75CF-76-90-4 — Availability: Low availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 75 — A: 117 mm (4.606 inch) — B: 102.4 mm (4.031 inch) — C: 90 mm (3.543 inch) — D: 76 mm (2.992 inch) — E: - — F: -
  • Code: FGT100CF-104-100-4 — Availability: High availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 100 — A: 152 mm (5.984 inch) — B: 130.3 mm (5.13 inch) — C: 100 mm (3.937 inch) — D: 104 mm (4.094 inch) — E: - — F: -
  • Code: FGT125CF-129-100-4 — Availability: Low availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 125 — A: 171.5 mm (6.752 inch) — B: 151.6 mm (5.969 inch) — C: 100 mm (3.937 inch) — D: 129 mm (5.079 inch) — E: - — F: -
  • Code: FGT150CF-154-120-4 — Availability: High availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 150 — A: 202 mm (7.953 inch) — B: 181 mm (7.126 inch) — C: 120 mm (4.724 inch) — D: 154 mm (6.063 inch) — E: - — F: -
  • Code: FGT200CF-204-120-4 — Availability: High availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 200 — A: 253 mm (9.961 inch) — B: 231.8 mm (9.126 inch) — C: 120 mm (4.724 inch) — D: 204 mm (8.031 inch) — E: - — F: -
  • Code: FGT250CF-254-150-4 — Availability: High availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 250 — A: 306 mm (12.047 inch) — B: 284 mm (11.181 inch) — C: 150 mm (5.906 inch) — D: 254 mm (10 inch) — E: - — F: -
  • Code: FGT275CF-273-150-4 — Availability: Low availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 275 — A: 336 mm (13.228 inch) — B: 306.3 mm (12.059 inch) — C: 150 mm (5.906 inch) — D: 273 mm (10.748 inch) — E: - — F: -
  • Code: FGT300CF-306-200-4 — Availability: Medium availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 300 — A: 368 mm (14.488 inch) — B: 338.1 mm (13.311 inch) — C: 200 mm (7.874 inch) — D: 306 mm (12.047 inch) — E: - — F: -
  • Code: FGT350CF-356-200-4 — Availability: Medium availability — Material: AISI 304 — Finish: External machined polish and internal raw — DN: 350 — A: 419.1 mm (16.5 inch) — B: 388.8 mm (15.307 inch) — C: 200 mm (7.874 inch) — D: 356 mm (14.016 inch) — E: - — F: -


Characteristics / Technical specifications:
  • Line: CF
  • Line type: CF
  • Product type: Flanges
  • Standard material: AISI 304
  • Finish: External machined polish and internal raw
  • Mounting/Use: flanges welded to the tube; the slotted part rotates relative to the tab integral with the tube; clamping via bolts
  • Technical documentation available: commercial product sheet (PDF) and technical datasheet (PDF)
