Manual drum lifter DRU02

motorizedforkhand crank

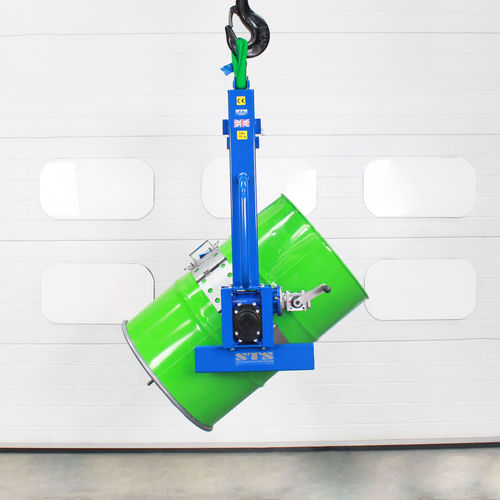

Product overview The Overhead Drum Rotator DRU02 features a variable universal band that secures steel, plastic or fibre drums from 50 to 220 L. A rim‑locking clamp provides a secondary hold to prevent slippage during rotation. The unit mounts to overhead cranes or forklift trucks for safe decanting and handling.

Key product features

• Universal drum band - Segmented stainless‑steel adjustable band with 50 mm stainless ratchet and polyester strap for drums 50–220 L.
• Rim‑clamp securing system - Rim‑locking device grips the drum lip to prevent movement during rotation.
• Self‑locking gearbox - Worm‑wheel self‑locking gearbox (120:1) with manual handle; optional powered rotation available.
• Sliding pivot - Stainless‑steel sliding pivot for fast band diameter adjustment to different drum sizes.

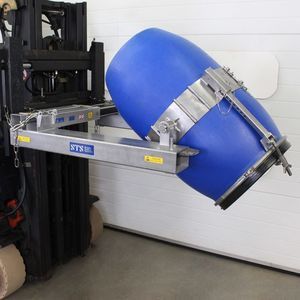

• Multiple pick‑up points - Large lifting pin for overhead cranes and fork pockets for forklift mounting.
• Drum compatibility - Suitable for steel, plastic and fibre drums (see drum suitability document for details).

Optional features

• ATEX / UKEX Ex‑rated version (DRU02‑SS‑Ex) in 304 stainless steel for zones 1, 2, 21 and 22.
• Full stainless‑steel model for cleanrooms and GMP areas.
• Fixed‑size over‑centre band for quicker securing of 200–220 L drums.
• Integrated load‑cell weighing system to weigh drums during decanting.

Usage notes The rotator offers flexible mounting options and ensures controlled rotation: the self‑locking gearbox prevents unintended drum rotation during handling. Select the Ex version for hazardous atmospheres and the stainless model for hygiene‑sensitive environments.

Technical specifications

• Safe working load (SWL): 350 kg
• Drum capacity: 50–220 L (steel, plastic, fibre; includes MAUSER drums)
• Band assembly: Segmented adjustable stainless‑steel band with 50 mm ratchet and polyester strap
• Additional securing: Rim clamp to grip drum top edge
• Rotation gearbox: Worm‑wheel self‑locking, ratio 120:1, manual handle
• Construction: Mild‑steel chassis with stainless‑steel band (standard); stainless‑steel chassis available for Ex/SS models
• Surface treatment: Grit blast (mild steel); aqua blast and vibro‑polish (stainless steel); primer and polyester powder coat (RAL 5010 blue) for standard model
• Compatibility: Fork pockets and large lifting pin included
• Compliance: CE / UKCA (DRU02); ATEX / UKEX certification available for DRU02‑SS‑Ex (zones 1, 2, 21, 22)
