Manual drum lifter DRU04

hand crankforkrotating

Product overview

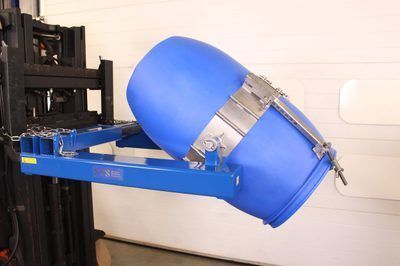

This forklift drum tipper attachment adjusts to suit various drum types and sizes. The tool allows operators to safely and efficiently empty drums in industrial environments.

Features
Universal drum band
This unit features a fully adjustable stainless-steel drum band, designed to accommodate steel, plastic, or fibre drums ranging from 50 to 220 litres. The band can be adjusted and secured with a ratchet and polyester strap. For users handling only 200-220 litre drums, a fixed over-centre clamp band option is available. Every model is equipped with a premium self-locking rotational gearbox to ensure smooth, controlled rotation without unintended movement.

Sliding mechanism
Designed for maximum adaptability, the model is compatible with drums 350-600 mm diameter and features an adjustable sliding mechanism that allows effortless resizing of the securing band by shifting the forks closer together along the carriage. This allows secure handling of smaller drum sizes as needed.

Fork pockets
The attachment is compatible with a wide range of forklift trucks and is supplied with a load test certificate. Fork pocket size is 136mm x 86mm. Recommended where forklift lift is appropriate; alternatives such as mobile drum tippers are available for certain indoor personnel-safety scenarios.

Drum compatibility
This Forklift Drum Tipper Attachment is designed for versatility and can handle a wide range of drum types, sizes, and materials suitable for hazardous environments. Compatible drum types include:

• Steel open-top drums
• Steel tight-head drums
• L-Ring plastic drums
• MAUSER plastic drums
• Fibreboard drums

ATEX available
A fully certified ATEX version (DRU04-SS-Ex) is offered for safe use in hazardous zoned areas. The ATEX model is constructed from 304-grade stainless steel to avoid thermic strike and is suitable for use in gas and dust environments (Zones 1, 2, 21, 22). ATEX-rated units are supplied with a manufacturer’s Declaration of Conformity and documentation to demonstrate compliance with relevant directives, standards, and ISO regulations.

Additional highlights

• Self-locking gearbox (worm-wheel)
• Segmented adjustable/universal band with 50mm stainless-steel ratchet and polyester strap
• Rim clamp included to grip the drum top edge and prevent slippage
• Robust construction designed for long service life

Specification
Safe working load (SWL): 350kg
Drum compatibility: Handles 50-220 litre drums (see types listed above)
Band assembly: Segmented adjustable/universal band with 50mm stainless-steel ratchet and polyester strap
Additional drum securing: Rim clamp included which grips the top edge of the drum preventing slippage
Rotation gearbox: Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction: Mild steel chassis/frame and stainless-steel rotator band assembly (stainless-steel option available in 304-grade material)
Unladen weight: 96kg
Fork pocket size: 136mm x 86mm
ATEX: Available as DRU04-SS-Ex for Zones 1,2,21,22 (304-grade stainless steel)

Technical specifications

• Model designation: DRU04
• Safe working load (SWL): 350 kg
• Handles drum sizes: 50–220 L (diameters approx. 350–600 mm, adjustable)
• Band: Segmented adjustable/universal band with 50 mm stainless-steel ratchet and polyester strap (fixed clamp option for 200–220 L drums)
• Additional securing: Rim clamp to prevent slippage
• Rotation gearbox: Worm-wheel, self-locking, 120:1 ratio with manual handle
• Construction materials: Mild steel chassis/frame; stainless-steel rotator band assembly; optional full 304-grade stainless-steel model for clean/corrosive environments
• Unladen weight: 96 kg
• Fork pocket size: 136 mm x 86 mm
• ATEX option: DRU04-SS-Ex certified for gas and dust Zones 1, 2, 21, 22; supplied with Declaration of Conformity
