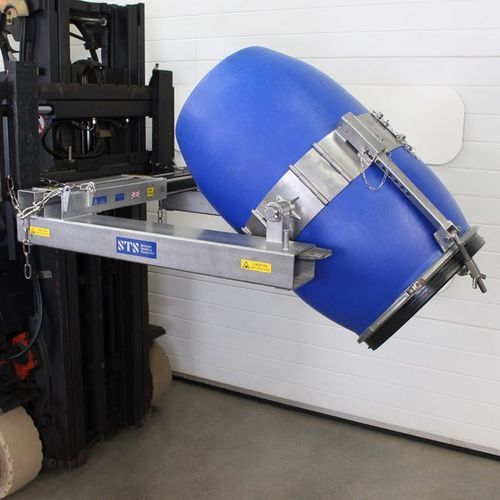

Manual drum lifter DRU04-SS-Ex

hand crankforkrotating

Overview
This ATEX-rated forklift Drum Tipper Attachment DRU04-SS-Ex is designed for safe decanting of drums in hazardous zoned areas using a forklift or stacker. The unit features a segmented adjustable stainless-steel band, sliding width adjustment and a self-locking worm-wheel rotation gearbox to ensure controlled rotation and secure handling.

Key features

• Universal segmented adjustable stainless-steel band with 50 mm stainless ratchet and polyester strap (fits 50–220 litre drums)
• Sliding mechanism for width adjustment to handle drums approx. 350–600 mm in diameter
• Fork pockets for secure carriage mounting (136 mm × 86 mm)
• Self-locking worm-wheel rotation gearbox, 120:1 ratio, with manual handle for controlled tipping
• Rim clamp included to secure drum top edge and prevent slippage
• Constructed in 304-grade stainless steel with brushed finish and TIG brush chemically-etched welds
• Load tested and supplied with load test certificate
• ATEX / UKEX rated for gas and dust Zones 1, 2, 21 and 22

Uses and compatibility
Compatible with steel, plastic and fibre drums (including MAUSER) from 50 to 220 litres. The sliding band and fork-carriage adjustment allow rapid adaptation between drum sizes without multiple dedicated attachments. Suitable for environments requiring minimised spark/static risk.

Operational benefits

• Smooth, controlled manual rotation via self-locking gearbox to prevent unintended movement
• High adjustability to accommodate a wide variety of drum types and diameters
• Hygienic stainless-steel construction appropriate for food and chemical sectors
• Designed for extended service life; estimated service life >20 years under normal use

Documentation available
Technical specification and operating instruction documents provided, including weight, dimensions, load capacity and safe operation guidance.

Technical specifications

• Model: DRU04-SS-Ex
• Safe working load (SWL): 350 kg
• Drum compatibility: Steel, plastic and fibre drums, 50–220 litres (includes MAUSER drums)
• Drum sizes accommodated (diameter): approx. 350–600 mm (adjustable)
• Band assembly: Segmented adjustable/universal band with 50 mm stainless-steel ratchet and polyester strap
• Additional securing: Rim clamp to grip drum top edge
• Rotation gearbox: Worm-wheel, self-locking, 120:1 ratio with manual handle
• Fork pocket size: 136 mm × 86 mm
• Construction material: Stainless steel 304-grade
• Finish: Brushed finish with TIG brush chemically-etched welds; smooth clean stainless-steel surfaces
• Compliance / certification: CE / UKCA; ATEX / UKEX certified (Zones 1, 2, 21, 22)
• Supply: Supplied load tested with Declaration of Conformity and compliance documentation
