Hydraulic drum lifter DTP04-R500-1250-LC

manualplatformwith gripping tool

Product overview
Over-pallet drum mover with integrated weigh-scale designed to load and unload full pallets of drums from one side. Universal adjustable drum catch secures a wide range of drum types and sizes. Weigh-scale system offers 0.1 kg accuracy and a battery-powered display with mains charger.

Key product features

• Weigh scale system - Heavy-duty 2000 kg load cell fitted between the lift carriage and head assembly to measure drum and contents. Rear-mounted display with zero, tare and standard weighing functions. System accuracy +/- 0.1 kg; battery-powered display with mains battery charger supplied.
• Universal drum catch - 304-grade stainless steel catch, height-adjustable and adaptable to various drum lips, sizes and materials.
• Stainless-steel ladder rack - Vertical adjustment of the drum gripper to suit multiple drum heights; side-shift mechanism with sixteen precision bearings for smooth lateral movement.
• Manual hydraulic pump - UK-made 17 cc hand-operated hydraulic pump with precision lowering valve; field-proven reliability and ease of operation.
• Chemical-resistant wheels - Aluminium-centred polyurethane tyres with precision bearings for performance in harsh environments; recommended for smooth, level floors.
• Drum suitability - Compatible with steel, plastic and fibreboard drums 50–220 litres (including MAUSER drums); adjustable catch and height to accommodate different types.
• ATEX / UKEX option (optional) - Fully certified versions available for gas and dust Zones 1, 2, 21 and 22; supplied with Declaration of Conformity and required anti-static/earthing measures.

Product media

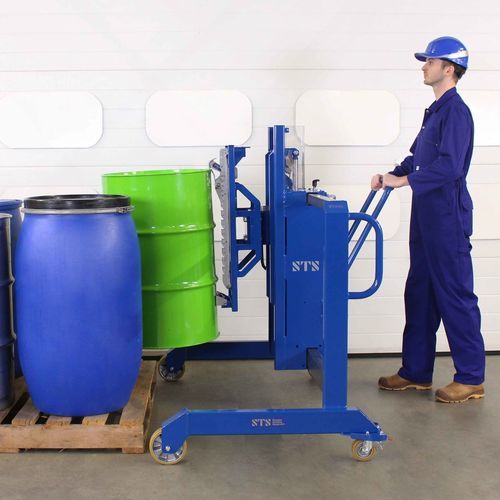

Multiple images show the unit from various angles, including rear view and operator weighing a drum. A product training video demonstrates operation and load cell weighing in use.

Technical specifications

• Safe working load (SWL): 350 kg
• Pallet straddle: 1250 mm
• Pallet approach: Over-pallet straddle, lateral sliding lifter body
• Drum compatibility: Steel, plastic and fibreboard drums, 50–220 litres (incl. MAUSER drums)
• Drum gripping catch: Adjustable for different drum lips; height adjustable
• Lift stroke: 500 mm
• Under-drum clearance: 370 mm
• Clearance under lifter body: 170 mm from bottom of lifter body to floor
• Lifting system: Hydraulic 17 cc hand-operated pump with lowering valve
• Weighing system: Heavy-duty weigh-scale system with accuracy +/- 0.1 kg; weights shown on fixed battery-powered display; tare and standard weighing controls; mains-powered battery charger provided
• Guarding: Shatterproof clear polycarbonate (anti-static for ATEX variant)
• Metal preparation: Grit blasted mild steel; aqua blasted stainless steel parts
• Surface finish: Primer and polyester powder coated mild steel; stainless steel surfaces smooth and clean
• Unit colour: RAL 5010 (blue)
• Front wheel type/material: Fixed 160 mm, precision bearings; aluminium-centred polyurethane tyres
• Rear wheel type/material: Braked castors 100 mm, precision bearings; aluminium-centred polyurethane tyres (anti-static polyurethane for ATEX variant)
• Compliance: EC Machinery Directive 2006/42/EC (standard model); ATEX Directive 2014/34/EU and CE Ex II 2 G D for ATEX versions (Zones 1, 2, 21 and 22)
