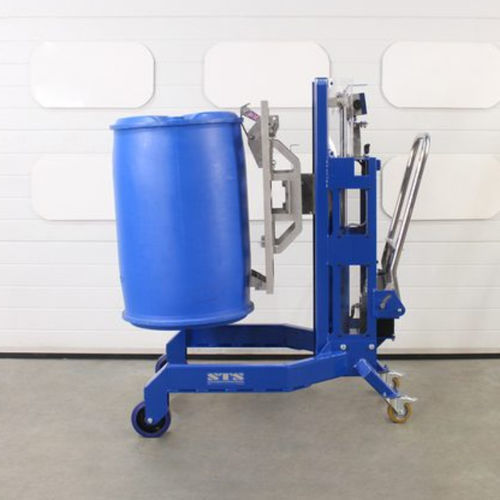

Manual drum lifter DTP03-R500-LC

hand-operatedwith gripping toolwith integrated hook

Overview

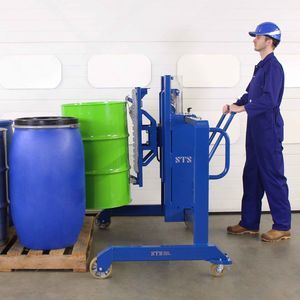

This manual drum lifter with integrated weigh scale is designed for safe lifting and manoeuvring of drums on and off 1200 mm x 800 mm Euro pallets and from the floor. The integrated weighing system provides accuracy to +/- 0.1 kg for quality control and precise batch formulation.

Key features

• Unique leg design: 800 mm straddle legs permit access to the narrow end of Euro pallets and allow lifting from pallet edges or the floor.
• Universal drum catch: stainless-steel adjustable gripping mechanism adapts to a wide range of drum types, sizes and lip profiles; top hook is adjustable fore and aft.
• Stainless-steel ladder rack: 304-grade ladder rack with adjustable catch positions to accommodate drum heights from 420 mm to 1000 mm.
• Manual hydraulic pump: UK-made 17 cc hand-operated hydraulic pump with lowering valve; pump-to-raise and manual valve-to-lower operation.
• Drum suitability: compatible with steel, plastic (including MAUSER) and fibreboard drums in common sizes (50–220 litres).

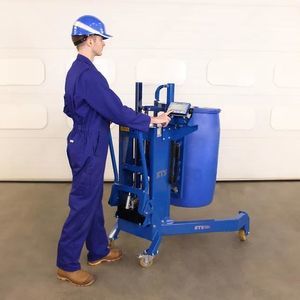

• Weighing system: heavy-duty scale with display accuracy of +/- 0.1 kg; fixed battery-powered display with tare function and standard weighing controls.
• Guarding: shatterproof clear polycarbonate protection (anti-static polycarbonate on ATEX variant).

Optional features

• ATEX / UKEX option: fully certified ATEX/UKEX version for use in Zone 1, 2, 21 and 22 environments (Ex-rated components, grounding/electrical continuity provisions and removable ATEX battery pack on weigh display).
• Stainless-steel model: fully stainless-steel construction with aqua-blasted smooth clean finish suitable for GMP/clean areas.

Technical specifications

• Safe working load (SWL): 350 kg
• Leg design: Straddle leg design to clear 800 mm wide pallet
• Pallet approach: Designed for lifting from the floor or Euro pallets
• Drum compatibility: Steel, plastic and fibreboard drums, 50–220 litres (including MAUSER drums)
• Drum gripping catch: Adjustable catch for different drum lips; height adjustable
• Lift stroke: 500 mm
• Under-drum clearance: 370 mm
• Lifting system: Hydraulic 17 cc hand-operated pump with lowering valve
• Weighing system: Heavy-duty weigh scale with accuracy of +/- 0.1 kg; fixed battery-powered display; tare function and industry-standard weighing controls (ATEX variant uses an ATEX-rated weigh system with removable ATEX battery pack)
• Guarding: Shatterproof clear polycarbonate (standard); anti-static shatterproof clear polycarbonate for ATEX variant
• Metal preparation: Grit-blasted mild steel; aqua-blasted stainless steel parts
• Surface finish: Primer and polyester powder coated mild steel; stainless steel is smooth and clean
• Unit colour: RAL 5010 (blue)
• Front wheel type: Fixed 160 mm, precision bearings
• Front wheel material: Aluminium-centred, polyurethane tyres (anti-static on ATEX variant)
• Rear wheel type: Braked castors 100 mm, precision bearings
• Rear wheel material: Aluminium-centred, polyurethane tyres (anti-static on ATEX variant)
• Compliance: EC Machinery Directive 2006/42/EC (standard); ATEX Directive 2014/34/EU Zones 1, 2, 21 and 22 CE Ex II 2 G D (for ATEX variant)
