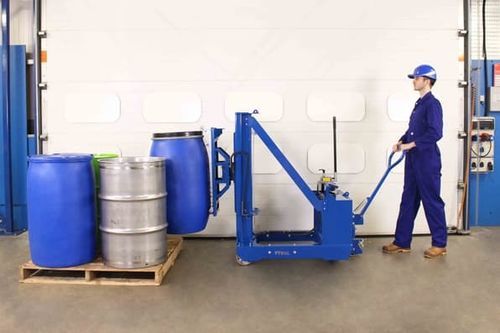

Hand-operated drum lifter DTP08-R500-LC

hydrauliccounterbalancedstainless steel

Overview
Our Counterbalance Drum Lifter DTP08-R500-LC integrates a heavy-duty weigh scale to provide precise weight measurement of drums and contents. The compact counterbalance design removes the need for outrigging legs, enabling operation in narrow aisles. The display is battery-powered and user-accessible at the rear of the unit for straightforward monitoring and tare/zero functions.

Key product features
Weigh scale system
The unit incorporates a heavy-duty load cell between the drum gripper and chassis for accurate weighing to +/- 0.1 kg. The rear-mounted battery display supports tare and zero functions and industry-standard weighing controls.

Universal drum catch
The adjustable drum gripper accommodates most 50–220 litre drums, including steel, plastic, fibreboard and MAUSER drums, via an adaptable catch for varying drum lips.

Vertical height adjustment
Adjustable catch and rack design allows vertical positioning of the gripper in 50 mm increments, maximising the available 500 mm lift stroke for different drum heights.

Efficient hydraulic lift system
Hydraulic lifting is achieved with a 13 cc hand-operated pump and lowering valve. Pumps are assembled and tested to ensure reliable hydraulic performance.

Drum suitability
Designed for a wide range of drum types and sizes. Refer to the drum suitability document for detailed compatibility information.

ATEX / UKEX option
Optional fully certified ATEX/UKEX variants are available for hazardous areas (Zones 1, 2, 21 and 22). These units include Ex-rated weigh scales, anti-static shatterproof guarding, anti-static polyurethane tyres and are supplied with a Declaration of Conformity.

Technical specifications

• Model: DTP08-R500-LC
• Safe working load (SWL): 250 kg or 350 kg
• Pallet approach: Approaches any flat side of a pallet (no legs in front of the lifter)
• Drum compatibility: Steel, plastic and fibreboard drums, 50–220 litres (including MAUSER drums)
• Drum gripping catch: Adjustable catch for different drum lips; height adjustable
• Lift stroke: 500 mm
• Under-drum clearance: 420 mm
• Lifting system: Hydraulic 13 cc hand-operated pump with lowering valve
• Weighing system: Heavy-duty weigh scale with accuracy of +/- 0.1 kg; battery-powered display; tare function and industry-standard weighing controls
• Guarding: Shatterproof clear polycarbonate
• Metal preparation: Grit blasted mild steel; aqua blasted stainless steel parts
• Surface finish: Primer and polyester powder coated mild steel; stainless steel surfaces smooth and clean
• Unit colour: RAL 5010 (blue)
• Front wheel type: Fixed 160 mm with precision bearings
• Front wheel material: Aluminium-centred, polyurethane tyres
• Rear wheel type: 160 mm steerable wheel with precision bearings
• Rear wheel material: Aluminium-centred, polyurethane tyres
• Compliance: CE / UKCA
• Optional ATEX / UKEX variant (DTP08-R500-LC-Ex): ATEX/UKEX heavy-duty weigh scale (accuracy +/- 0.1 kg), anti-static shatterproof guarding, anti-static polyurethane tyres, compliance for zones 1, 2, 21 and 22
