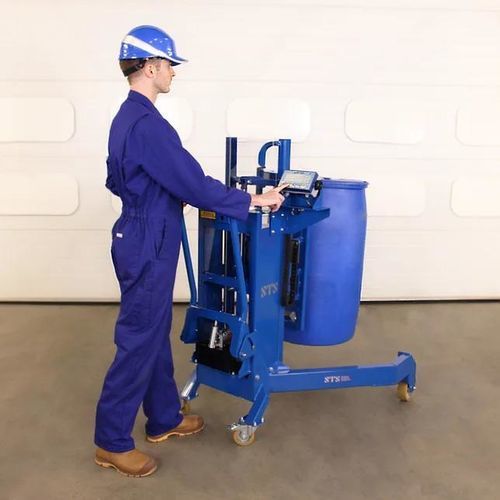

Manual drum lifter DTP05-R500-LC

hydraulicleverwith gripping tool

Overview
This corner drum lifting trolley integrates a heavy-duty weigh scale to lift drums from the corner of pallets and measure contents with industry-grade accuracy. Designed for batch manufacturing and quantity-sensitive operations, the unit combines adjustable drum gripping, hydraulic lift control and chemical-resistant wheels for reliable handling.

Key product features

• Weigh scale system - Heavy-duty load cell (2000 kg) fitted between lift carriage and head assembly. Fixed battery-powered display mounted to the rear of the head assembly. Functions: zero, tare and industry-standard weighing controls. Accuracy +/- 0.1 kg. Mains-powered charger supplied.
• Universal drum catch - Precision adjustable stainless-steel gripper laser-cut for repeatable engagement with drum lips; height-adjustable to suit various drum types and sizes.
• Stainless-steel ladder rack - Adjustable ladder rack to change catch position for different drum heights.
• Manual hydraulic pump - Aluminium hand pump (17 cc) with lowering valve; hand-operated lever for precise lift and descent control. Hydraulics assembled and tested for cleanliness.
• Chemical-resistant wheels - Polyurethane tyres with aluminium centres and precision bearings; recommended for smooth surfaces and chemical environments.
• Drum suitability - Compatible with steel, plastic and fibreboard drums 50–220 L (including MAUSER drums). Adjustable catch and ladder rack accommodate a wide variety of drums.
• ATEX / UKEX (optional) - Fully certified ATEX / UKEX version available for hazardous areas (Zones 1, 2, 21, 22) with electrical continuity and Declaration of Conformity.

Optional features

• ATEX / UKEX certification for gas/dust classified areas.
• Full stainless-steel construction and finishes for cleanrooms and GMP areas.

Technical specifications

• Safe working load (SWL): 350 kg
• Leg design: Straddle legs, internal width 1130 mm, external width 1340 mm
• Pallet approach: Lifts from corner of square pallet or end of 800 x 1200 mm Euro pallet
• Drum compatibility: Steel, plastic and fibreboard drums, 50–220 L (including MAUSER drums)
• Drum gripping catch: Height-adjustable, suitable for different drum lips
• Lift stroke: 500 mm
• Under-drum clearance: 370 mm
• Lifting system: Hydraulic 17 cc hand-operated pump with lowering valve
• Weighing system: Heavy-duty load cell with accuracy +/- 0.1 kg; fixed battery display with tare and standard weighing controls; mains charger supplied
• Guarding: Shatterproof clear polycarbonate (anti-static in ATEX version)
• Metal preparation: Grit-blasted mild steel; aqua-blasted stainless steel parts
• Surface finish: Primer and polyester powder coat on mild steel; smooth stainless steel finish
• Unit colour: RAL 5010 (blue)
• Front wheel type: Fixed 160 mm, precision bearings
• Front wheel material: Aluminium-centred, polyurethane tyres (anti-static polyurethane for ATEX version)
• Rear wheel type: Braked castors 100 mm, precision bearings
• Rear wheel material: Aluminium-centred, polyurethane tyres (anti-static polyurethane for ATEX version)
• Compliance: EC Machinery Directive 2006/42/EC; (ATEX option) ATEX Directive 2014/34/EU Zones 1, 2, 21 and 22 CE Ex II 2 G D
