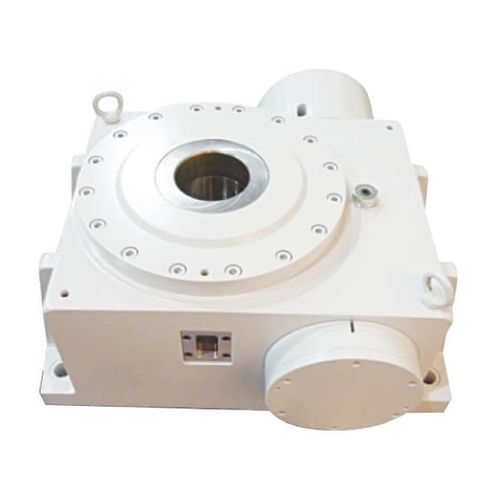

Worm gear reducer WG Seriesright angledual-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- dual-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
- Configuration
- compact, modular
- Number of stages
- single-stage
- Performance
- high-power, high-precision, high-performance, low-noise, low-backlash, high-torque, maintenance-free, high-rigidity, for heavy loads, zero-backlash, high-capacity
- Applications
- for servo motors, for industrial applications, for heavy-duty applications, for machines, for automation, industrial, for machine tools
- Other characteristics
- high-quality
- Rotational speed
Max.: 4,000 rpm
(25,132.7412 rad.min-1)Min.: 1,000 rpm
(6,283.1853 rad.min-1)- Backlash
Max.: 0 rad
Min.: 0 rad
Description
Duplex lead worm is used. By the adjustment, reducers can be backlash-free. Widely used on W axis of CNC moving beam gantry boring and milling machine.
Backlash-Free design
Duplex lead worm, twin bearing, heavy load.
Special alloy steel
Worm gear made of special alloy steel, high-quality bearing, maintain long-period positioning accuracy.
Compact structure
High rigidity boxing.
Big hole design
Big hole design, insert the ball screw directly.
Catalogs
WG series
2 Pages
