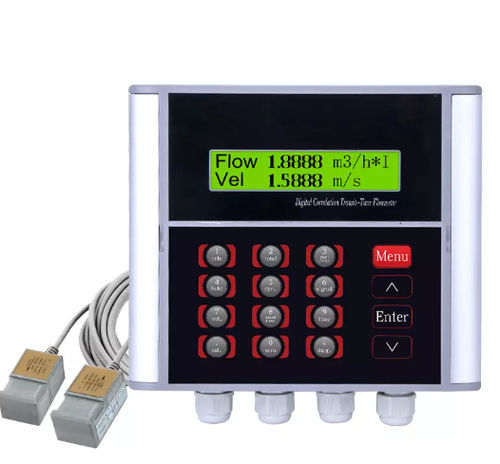

Ultrasonic flow meter SUP-1158-J
for liquidsDN25 - 1"DN32 - 1"1/4

ultrasonic flow meter
ultrasonic flow meter
ultrasonic flow meter
ultrasonic flow meter
ultrasonic flow meter
ultrasonic flow meter
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Fluid
for liquids
Pipe diameter
DN100 - 4", DN125 - 5", DN25 - 1", DN32 - 1"1/4, DN40 - 1"1/2, DN50 - 2", DN65 - 2"1/2, DN80 - 3", DN90 - 3"1/2
Mounting
wall-mounted
Communication
4-20 mA, digital output, Modbus
Supply voltage
36 VDC
Other characteristics
RS485
Process temperature

Min.: -10 °C (14 °F)

Max.: 80 °C (176 °F)

Precision

1 %

Description

SUP-1158-J Wall mounted ultrasonic flowmeter SUP-1158-J ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance. Features Pipe diameter: DN25-DN1200 Accuracy: ±1% Power supply: 10~36VDC/1A Output: 4~20mA, RS485 Product - Ultrasonic flowmeter Model - SUP-1158-J Pipe size - DN25-DN1200 Accuracy - ±1% Output - 4~20mA, 750Ω Communication - RS485, MODBUS Flow rate - 0.01~5.0 m/s Working temperature - Convertor: -10℃~50℃; Flow Transducer: 0℃~80℃ Working humidity - Convertor:99%RH; Display - 20×2 LCD English letters Power supply - 10~36VDC/1A Case material - PC/ABS Line - 9m(30ft) Handset weight - Transmitter: 0.7Kg; Sensor: 0.4Kg Introduction SUP-1158-J ultrasonic flowmeter uses advanced circuit design coupled with excellent hardware designed in English for liquid flow detection and comparison testing in pipes. It has the characteristics of simple operation, convenient installation, stable performance and long lasting life.
