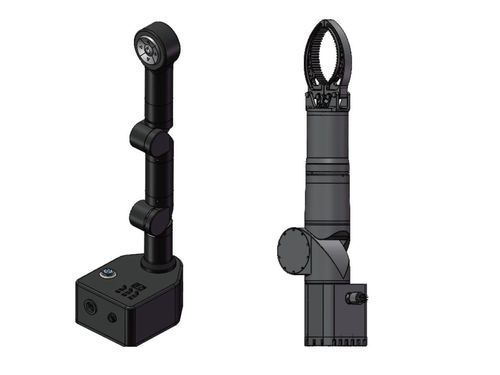

Cobot M series

3-axis5-axiscutting

Introduction
The HONPINE M Series underwater collaborative robot is a heavy‑duty subsea manipulator designed for offshore operations such as component handling, installation and subsea cutting. Available in M3 (2+1 DOF) and M5 (4+1 DOF) variants, the system is manufactured in AL6061 aerospace‑grade aluminum with hard anodized treatment and rated for operation to 300 m depth. Typical M5 mass is 15 kg in air and 8 kg underwater, with a rated payload of 12 kg.

Features

• Heavy‑duty subsea performance: 12 kg rated payload; gripping force up to 1000 N (M5) / 100 N (M3); cutting force 1500 N; gripper range 0–200 mm; cutting stroke 0–20 mm.
• Lightweight marine deployment: reduced underwater mass (example M5: 15 kg air / 8 kg underwater; M3: 11.5 kg air / 5.5 kg underwater) to lower ROV/platform load and improve maneuverability.
• High‑speed actuation: wrist torque up to 30 N·m; fast end‑effector responses (typical gripping ~4.5 s; cutting ≤8 s; specified gripper times ≤8 s for M3 and ≤11 s for M5).
• Control & integration: servo motor drives; position and speed control modes; ROS support (M5); RS485 and Ethernet interfaces (variant dependent); compatible with master‑slave teleoperation.
• Full‑range motion: J1/J4 continuous ±360° (where indicated); J2/J3/J5 typical ranges 0–170° depending on configuration; flexible 4+1 DOF architecture for confined subsea tasks.
• Marine‑grade corrosion protection: AL6061 body with hard anodized surface for long‑term seawater resistance.

Specification (table)
Note: values differ by variant (M3 / M5). DOF: 2+1 (gripper) / 4+1 (gripper). Weight (air/underwater): 11.5 / 5.5 kg (M3) | 15 / 8 kg (M5). Rated payload: 12 kg. Waterproof depth: ≤300 m. Body material: AL6061. Surface treatment: hard anodized. Mounting: bottom flange. Control: position/speed (M3), position with ROS support (M5). Standard cable length: 1.5 m. Drive: servo motor. Peak power: 750 W (M3) / 1675 W (M5). Rated voltage: 41–51 V DC. Communication: RS485/Ethernet (M3) / Ethernet (M5).

Actuator & joint highlights
Examples: J1 (M3) rated power 300 W, rated speed 13.6°/s, rated torque 100 N·m, working range 0–170°; J2 (M3) rated power 300 W, speed 60°/s, torque 30 N·m, range ±360° (M3) / 0–170° (M5). J1/J4 continuous ±360° where specified; other axis ranges are variant dependent.

End‑effector, gripper & cutting
Gripper (M3): rated power 150 W, max opening angle 100°, gripping range 0–200 mm, gripping force 100 N, open/close time ≤8 s. Gripper (M5): gripping range 0–200 mm, gripping force 1000 N, open/close time ≤11 s. Cutting tool: stroke 0–20 mm, cutting force 1500 N, cutting time ≤8 s.

Technical characteristics

• Model series: HONPINE M Series (M3, M5).
• Degrees of freedom: M3 = 2+1 DOF; M5 = 4+1 DOF.
• Rated payload: 12 kg.
• Weight examples: M5 = 15 kg (air) / 8 kg (underwater); M3 = 11.5 / 5.5 kg.
• Max operating depth: ≤300 m.
• Body material & finish: AL6061 with hard anodized coating.
• Gripper range: 0–200 mm; gripping force M3 = 100 N, M5 = 1000 N.
• Cutting: 0–20 mm stroke, 1500 N cutting force.
• Drive & electrical: servo motor drives; peak power and rated voltage as specified above.
• Communications: RS485 / Ethernet (variant dependent); ROS integration supported (M5).
• Mounting: bottom flange; standard cable length 1.5 m.
