Particle separator NV

gravityprocessautomatic

Overview
QuickChange NV

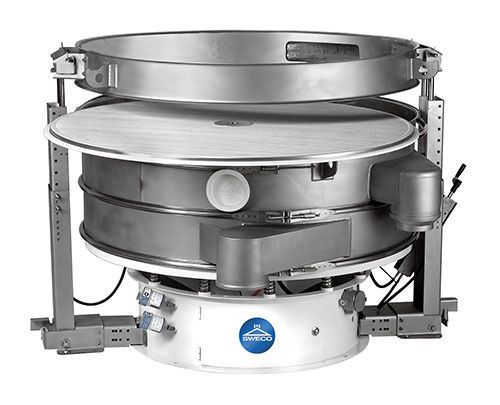

The QuickChange NV from SWECO is a non-vibrating screen change system that simplifies screen replacement into a single-operator task. It uses closed-loop hydraulic lifters mounted off the unit base or fixed to the plant floor to raise the frame stack safely and precisely.

QuickChange PT
The QuickChange PT employs two self-contained air cylinders housed in towers mounted on each side of the unit. Cylinder rods engage brackets on the cover or frame to lift the frame stack. The PT design reduces footprint compared with older systems and is offered in carbon steel or stainless steel for 48 and 60 in units. Pneumatic actuation is controlled by a simple switch for fast, one-person operation.

Benefits

• Enables single-operator screen changes
• Significantly reduces downtime during maintenance
• Improves throughput and operational productivity

Additional information

• QuickChange brochure available

Other round separators (related products)

• Classics
• Low Profile Flow-Thru
• Bag Dump Screener
• Avalanche
• EV Battery Separator
• 3dMP Separator
• PSI Sifter
• Ultrasonics
• High-Temp Separator
• Accu-Feed
• DC Classifiers
• Sanitary Separators
• Lab Separators

Technical specifications

• Types: QuickChange NV (non-vibrating hydraulic lift) and QuickChange PT (pneumatic tower lift)
• NV lift: closed-loop hydraulic lifters mounted off the base or to the plant floor
• PT lift: two self-contained air cylinders in independent towers; rods engage brackets on cover/frame to lift frame stack
• Operation: designed to allow one-person screen changes
• PT footprint: reduced compared with previous-generation systems
• Materials: PT available in carbon steel and stainless steel for 48 and 60 in units
• Actuation: PT pneumatically powered, operated via switch
• Main advantages: faster screen changes, reduced downtime, increased productivity
