Vibrating separator LX series

particlefor the food industrycircular

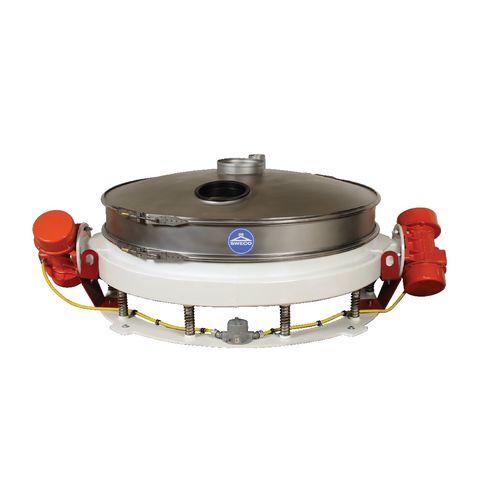

LOW profile FLOW--THRU SEPARATOR HIGH CAPACITY IN A COMPACT DESIGN The Sweco® Low Profile Flow-Thru Separator offers high capacity wet or dry scalping in a compact,low headroom design. Dual motors mounted on opposite sides of the Low Profile create the 3-D motion that allows maximum flow-thru of material. Because of its low headroom requirements (as little as 15 inches) and straight, flow-thru design, the Low Profile fits easily into existing product lines without reworking the entire system. Inlets and outlets can be custom designed to mate with existing equipment and piping. The Low Profile is ideally suited for prepackaging screening in many food and pharmaceutical applications, as well as for bulk bag unloading and screening of raw ingredients. Available in 18” thru 72” diameter machines Greater Throughput - Dual side mount motors allow for maximum flow-thru of material through the separator. Throughput is determined directly by screen mesh. In addition, oversize material is efficiently removed from the screen surface with 3-D vibratory motion.
