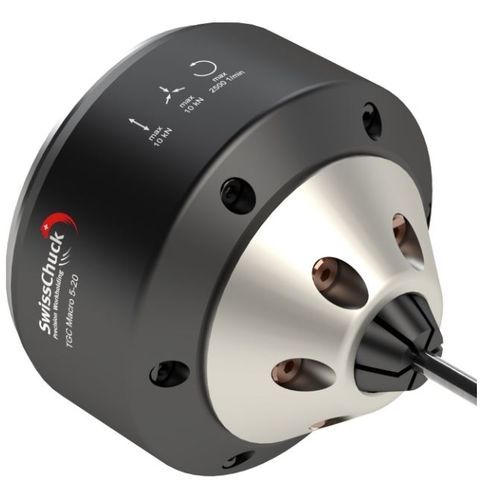

Tool grinding workpiece clamping chuck TGC

grindingmanualcylindrical

Increase your productivity and lower your cost! In modern manufacturing, batch sizes are becoming smaller and smaller, and machining processes are more complex. At the same time, however, the demand for fully automated production is increasing, which makes it possible to reduce personnel costs and increase productivity. To exploit the full potential of modern production machines, a flexible clamping device with variable clamping diameter is a prerequisite Functions & Fields of Application • Variable clamping range • Interface to axial stops • Patented clamping technology • Various actuation options • For tool-grinding machines • For grinding machines • For lathes • Cylindrical grinding • Soft and hard turning Advantages • Variable clamping range reduces setup times • No manual change-over of the collets is necessary • Suitable for automated production • Highest precision ≤ 0.005mm • Active air purge protects from contamination • Axially stationary tungsten carbide jaws guarantee minimal wear of clamping position • Suitable for tool grinding machines, cylindrical grinding machines, and lathes • No separate alignment and truing for individual clamping areas are necessary • Existing interfaces for Rollomatic, Studer, Junker, Schütte, and Benzinger • On customer request, chucks can be adapted to all common machine spindles Increase your productivity and reduce costs! In high-volume production, different production batch sizes, including different clamping diameters, should be ground without manual change-over of the collets. With the TGC multi-range chuck, we have met all these requirements.
