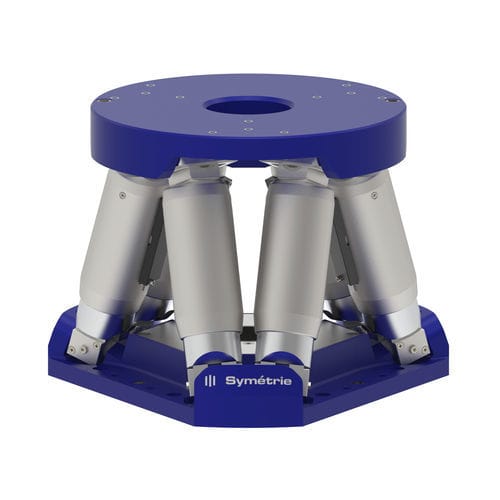

Positioning hexapod BORADCindustrialvacuum
Add to favorites
Compare this product
Characteristics
- Type
- positioning
- Motor type
- DC
- Applications
- for testing, for aerospace applications, vacuum, for clean rooms, for robotics, optical beam, X-ray, for fiber optics, for geometric alignments, for laboratory applications, for medical applications, industrial, for optical applications, for the semiconductor industry, for wafer handling, for wafer inspection and metrology
- Other characteristics
- compact, custom, precision, high-accuracy, high-resolution, absolute encoder, satellite, with controller, with parallel kinematics
- Payload capacity
Min.: 0 kg
(0 lb)Max.: 10 kg
(22 lb)- Linear stroke X
Min.: -20 mm
(-1 in)Max.: 20 mm
(1 in)- Linear stroke Y
Min.: -20 mm
(-0.79 in)Max.: 20 mm
(0.79 in)- Linear stroke Z
Min.: -10 mm
(-0.39 in)Max.: 10 mm
(0.39 in)- Angular stroke X
Min.: -10 °
Max.: 10 °
- Angular stroke Y
Min.: -10 °
Max.: 10 °
- Angular stroke Z
Min.: -15 °
Max.: 15 °
- Height
145 mm
(5.7 in)- Resolution
0.1 µm
- Repeatability
0.4 µm
- Speed
2 mm/s
Description
MINIATURE HEXAPOD FOR HIGH ACCURACY POSITIONING
BORA hexapod is a compact 6DOF parallel kinematics system for the positioning and adjustment of precision elements with a resolution of 0.1 µm.
BORA hexapod meets the most demanding criteria of the optics and nanotechnologies in terms of resolution, accuracy, stability and size.
Its dimensions allows an integration in a small invironment, for instance at the tip of a goniometer for an application on synchrotron beamline, or on an optical ground support equipment to align and calibrate space optics.
BORA hexapod can be used in any orientation: vertical, horizontal, upside down…
OPTIONS
► High vacuum compatibility down to 10-6 mbar
► Clean room compatibility
APPLICATIONS
► Instrumentation
► Optics
► Test laboratories
► Aeronautics and spatial
► Metrology
► Synchrotrons: sample, KB mirrors positioning
