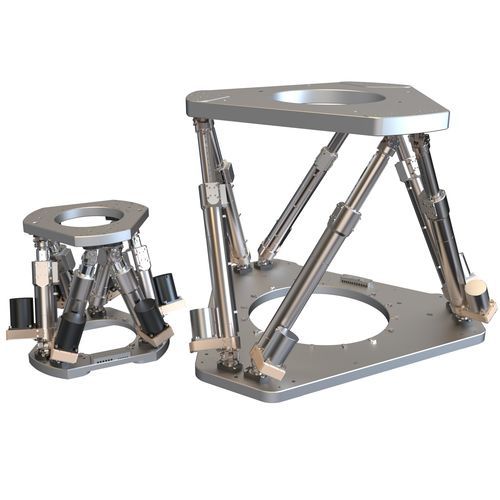

Positioning hexapod ZONDAsteppervacuumX-ray
Add to favorites
Compare this product
Characteristics
- Type
- positioning
- Motor type
- stepper
- Applications
- for the semiconductor industry, for aerospace applications, for testing, vacuum, for robotics, for clean rooms, for fiber optics, for geometric alignments, for laboratory applications, optical beam, X-ray, for medical applications, for optical applications, for wafer inspection and metrology, for wafer handling
- Other characteristics
- high-accuracy, custom, precision, high-resolution, absolute encoder, API, for heavy loads, for mirror, satellite, with controller, with parallel kinematics, with stepper motor
- Payload capacity
Min.: 0 kg
(0 lb)Max.: 400 kg
(881.8 lb)- Linear stroke X
Min.: -200 mm
(-8 in)Max.: 200 mm
(8 in)- Linear stroke Y
Min.: -200 mm
(-7.87 in)Max.: 200 mm
(7.87 in)- Linear stroke Z
Min.: -150 mm
(-5.91 in)Max.: 150 mm
(5.91 in)- Angular stroke X
Min.: -20 °
Max.: 20 °
- Angular stroke Y
Min.: -20 °
Max.: 20 °
- Angular stroke Z
Min.: -20 °
Max.: 20 °
- Height
750 mm
(29.5 in)- Resolution
5 µm
- Repeatability
2 µm
- Speed
8 mm/s
Description
HIGH ACCURACY AND HEAVY PAYLOAD
ZONDA hexapod is a new high-performance 6DOF system meeting applications requiring both high precision, stability, accuracy, heavy load and large travels.
Designed to position up to 400 kg payload with a resolution of 50 nm only, ZONDA hexapod offers great travel with 400 mm in XY, 300 mm in Z, and 40 ° in the three rotations Rx, Ry and Rz.
ZONDA hexapod has unmatched accuracy and thermal stability characteristics thanks to the integrating Invar components with a very low CTE (Coefficient of Thermal Expansion), linear absolute encoders integrated as a standard in the actuators and the design of particularly rigid joints.
ZONDA hexapod can be used in any orientation: vertical, horizontal, upside down…
Optionally, ZONDA hexapod can be high vacuum (10-6 mbar) or cleanroom compatible.
APPLICATIONS
► Instrumentation
► Optics
► Test laboratories
► Aeronautics and spatial
► Metrology
